-- NEW -- Fully Adjustable Welding Manipulator Table

***While Supplies Last***  Order now to get your table on a first come, first served basis! -- Free Domestic Shipping --

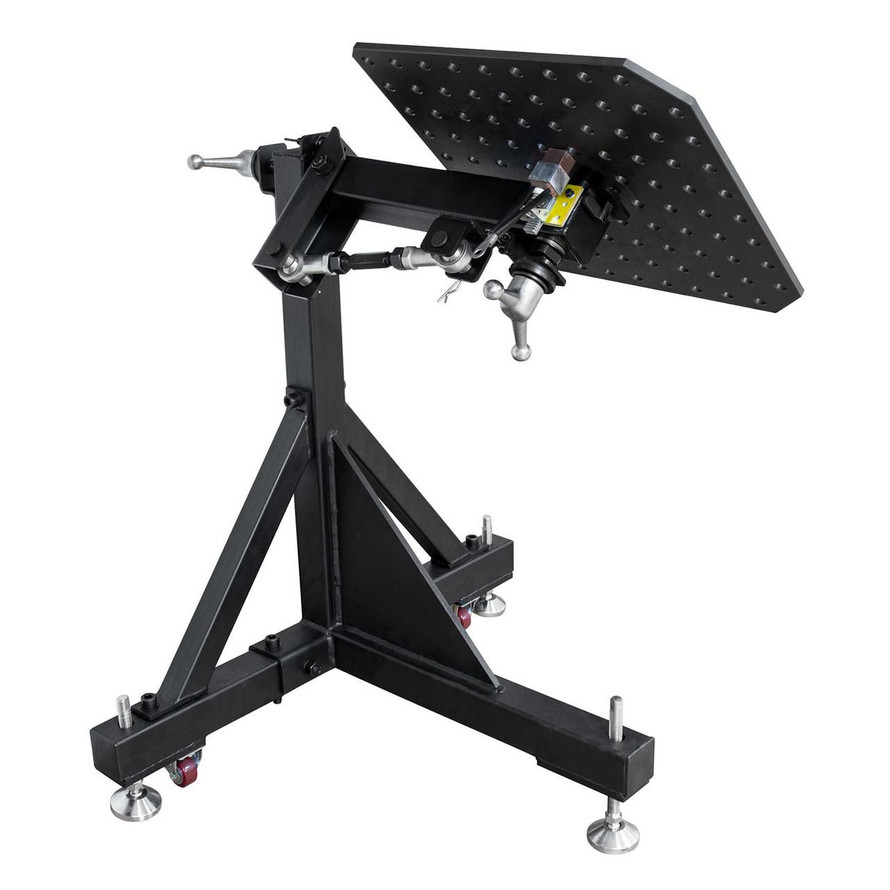

The BuildPro™ Manipulator Table uses two rotating axis and one tilting axis to position your work in the ideal spot.  Perfect for production shops that need to weld compact, hard to reach joints.  Now you can roll right up to the table and position the part exactly where you want it -- no more reaching across a dedicated fixture table!  Mobile and job site jobs just got easier, now you can jig and fixture flanges, brackets, tube and pipe jobs quickly and consistently!

  • Access difficult joints without putting yourself in an awkward position
  • Position the joint for fast turn-around. Go from vertical up or overhead to a flat or downhill weld. Get the job finished with less mental and physical fatigue
  • Fast repositioning. No need to un-clamp
  • Efficient grid pattern for fast/flexible clamping and positioning
  • Table top is compatible with 5/8" BuildPro™ clamps and accessories
  • Integral work ground uses a spring loaded carbon brush that grounds directly to the table plate

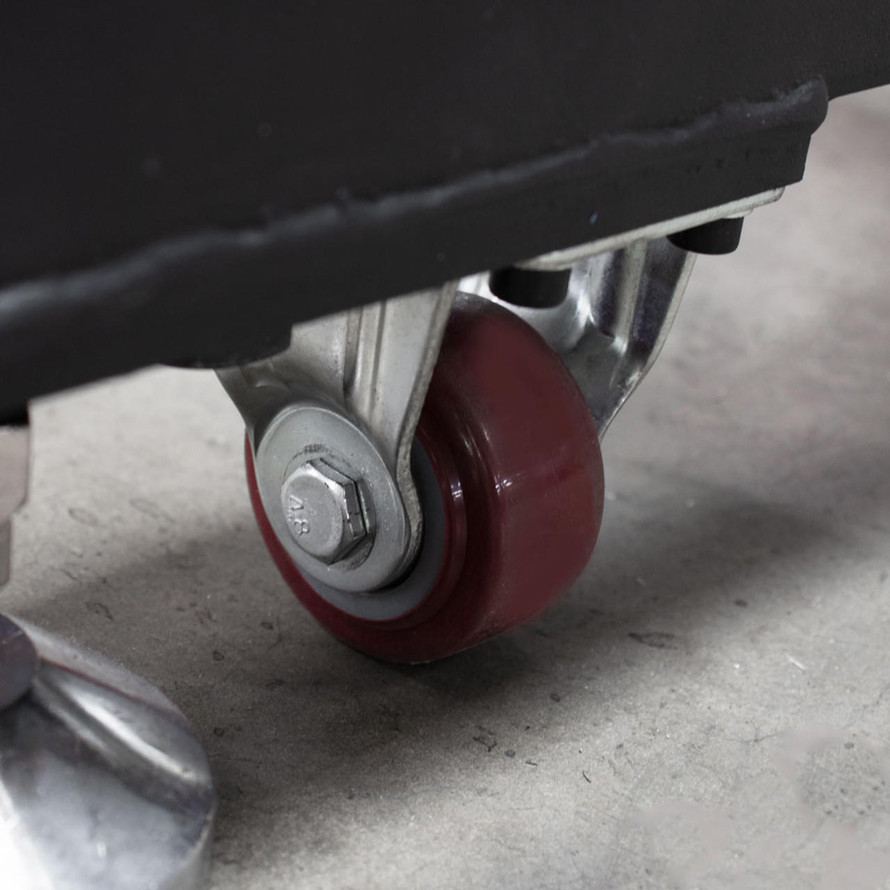

  • Casters for quick positioning  -- integrated leveling casters lock the manipulator in place
  • For best results, always position the center of gravity of the work piece in line with the two rotating axis to achieve low resistance repositioning
Part # SHT-TU52020
Capacity 110 lbs (49.9kg)
Table Dimensions 20" x 20" (0.5m x 0.5m)
Table Thickness 15/32" (11.9mm)

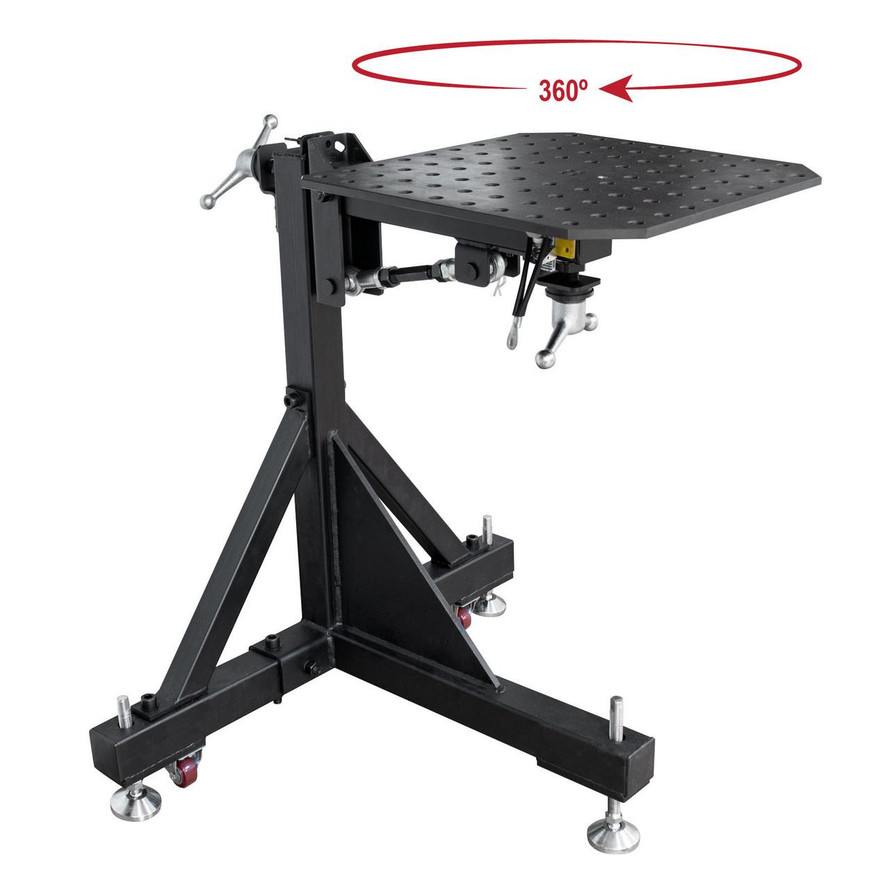

Table Rotation 360º
Hole Diameter 5/8" (16mm)
Hole Spacing 2" x 2" (50.8mm)

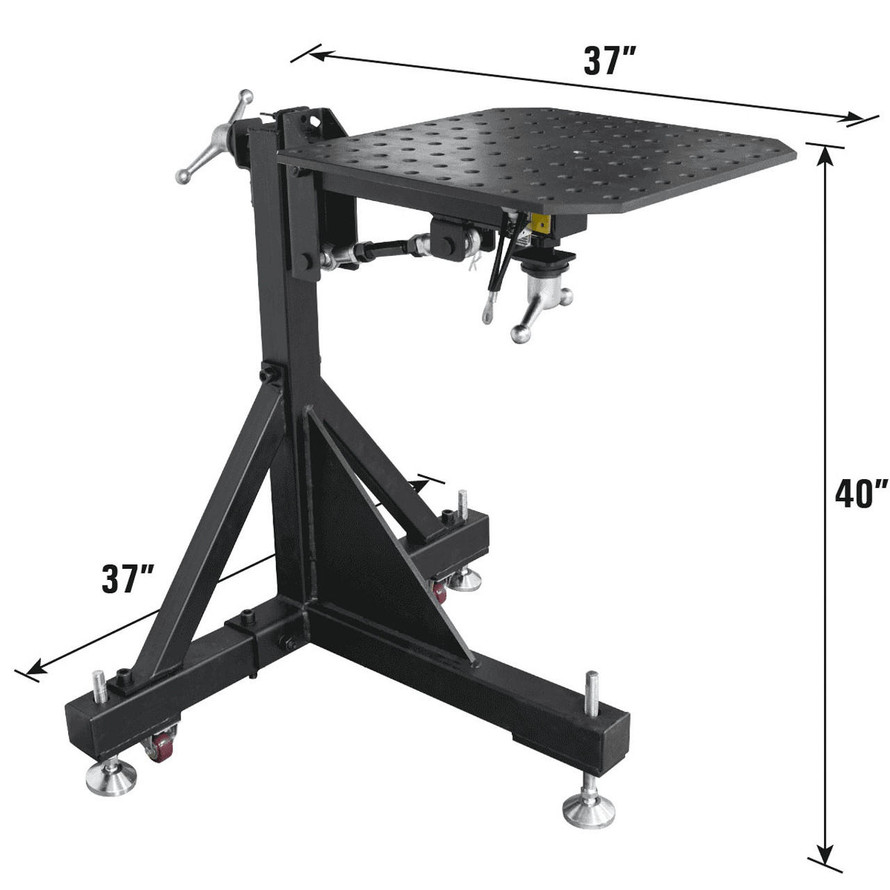

Manipulator Width 37" x 37" (0.94m x 0.94m)
Manipulator Height 40" (1.0m)
Weight 154 lbs (69.9kg)

***This item ships by freight truck, contact the Arc-Zone Customer Care Team for shipping quotes outside the contiguous U.S.
