Description

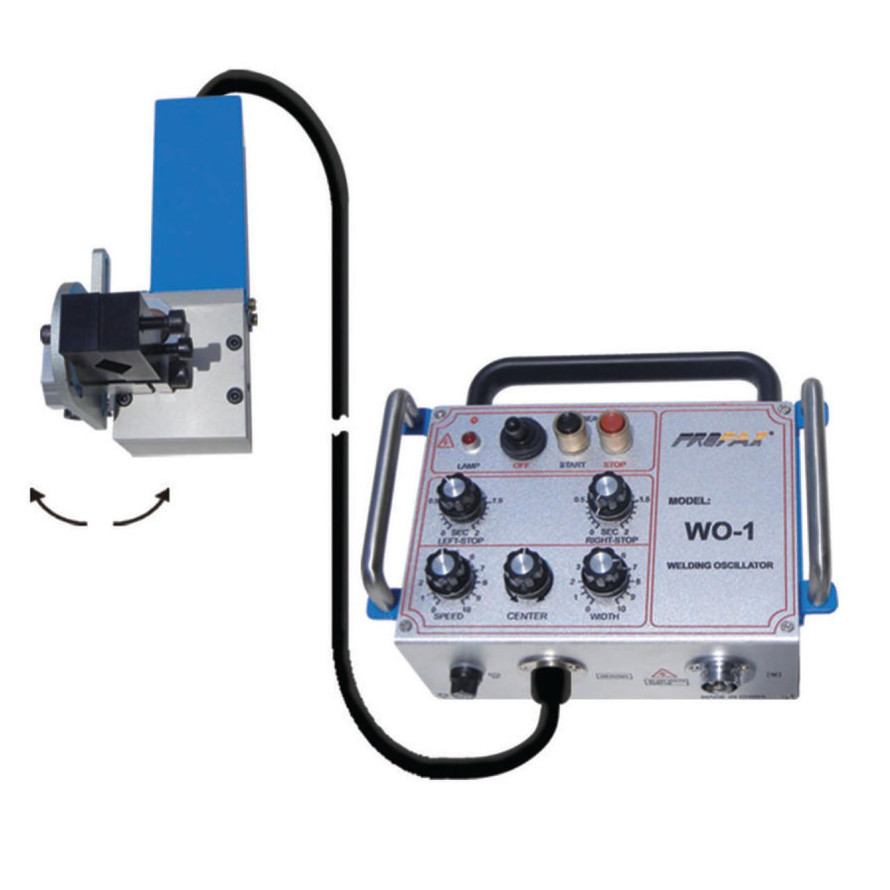

PROFAX® Model PX-WO-1S Linear & PX-WO-1V Angle Style Oscilators (Select Linear -or- Angle Type Oscillator From Options Above)
Operator friendly pendant
| Part # | PX-WO-1S | PX-WO-1V |
|---|---|---|
| Oscillator Type | Linear | Angle |
| Torch Diameters | 5/8" - 1-3/8" (Up to 1-7/8" w/ Optional WCS-222-5) |
|
| Load Capacity | 10 lbs. | 10 lbs. |
| Speed | 0-130 IPM | 0-50 Cycles/Minute |
| Weld Width | 0-1.56" | |
| Swing Width | +/- 8 degrees | |
| Centerline Adj. | +/- .25" | +/- 4 degrees |
| L & R Dwell | 0-2 sec. | 0-2 sec |
| Motor | 24V DC | 24V DC |
| Drive | Rack & Pinion | Worm Drive |
| Input Power | 110 or 220V AC | 110 or 220V AC |
