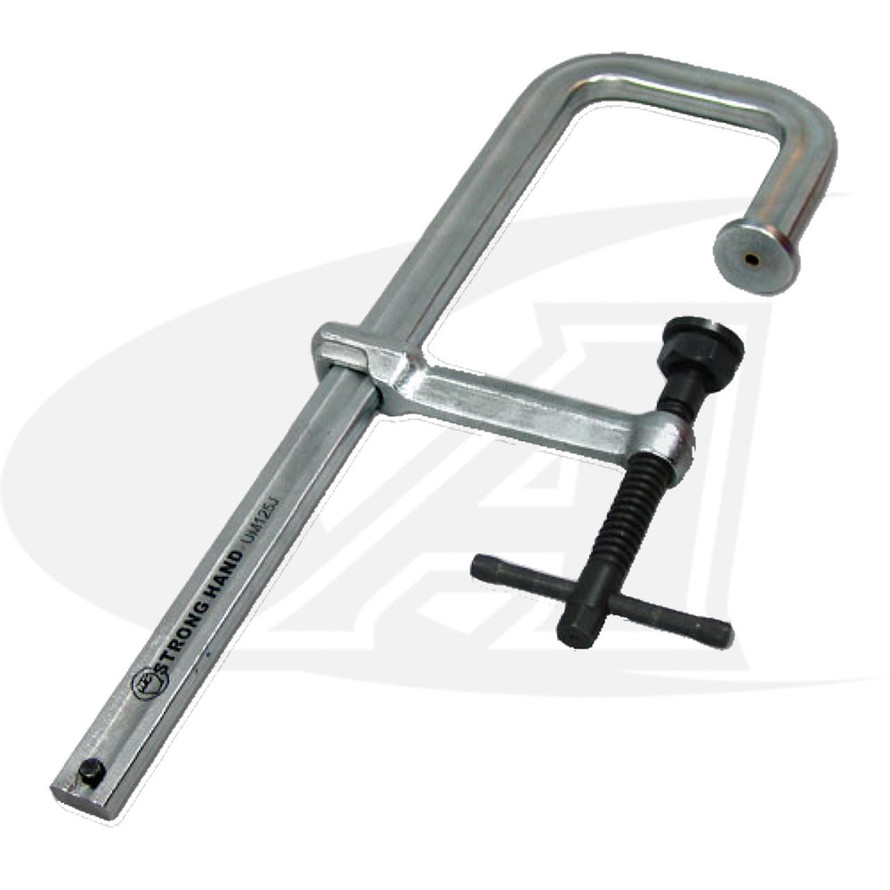

Reversible Arm Utility Clamp - Heavy Duty, Step-Over

Click to see larger version of Reversible Arm Utility Clamp - Heavy Duty, Step-Over

Starting at:  $80.33

  Qty.
Reversible Arm Utility Clamp - Heavy Duty, Step-Over
Reversible Arm Utility Clamp - Heavy Duty, Step-Over
Reversible Arm Utility Clamp - Heavy Duty, Step-Over

Product Description

Strong Hand Tools® Heavy Duty, Step-Over Utility Clamp (Choose Clamp Size From Dropdown Menu Above)

Part # SHT-UM125J SHT-UM165J SHT-UM205J
Clamping Capacity 12-1/2" (317mm) 16-1/2" (419mm) 20-1/2" (520mm)
Throat Depth 5-1/2" (140mm) 5-1/2" (140mm) 5-1/2" (140mm)
Return 4" (120mm) 4" (120mm) 4" (120mm)
Tapped Hole 3/8"-16 3/8"-16 3/8"-16
Clamping Pressure 2,400 lbs (1,089kg) 2,400 lbs (1,089kg) 2,400 lbs (1,089kg)
Weight 8.1 lbs (3.7kg) 8.5 lbs (4.0kg) 9.2 lbs (4.2kg)

Utility Clamps set-up 10x faster than a C-Clamp! You can create your own 4-IN-1 kit with the 4-IN-1 Accessory Pack!

These clamps have heavy duty, replaceable clamping pads and 1-3/16" (30mm) x 9/16" (14mm) rails.
