Diamond Ground

DGP-1 Precision Tungsten Electrode Grinder (Optional Upgrade)

(No reviews yet) Write a Review
MPN:
DGP-1-A
Minimum Purchase:
1 unit
  • Diamond Ground DGP-1 Precision Tungsten Electrode Grinder (Optional Upgrade)
  • Diamond Ground DGP-1 Precision Tungsten Electrode Grinder (Optional Upgrade)
  • Diamond Ground DGP-1 Precision Tungsten Electrode Grinder (Optional Upgrade)
  • Diamond Ground DGP-1 Precision Tungsten Electrode Grinder (Optional Upgrade)
$1,564.00 - $3,083.00

Description

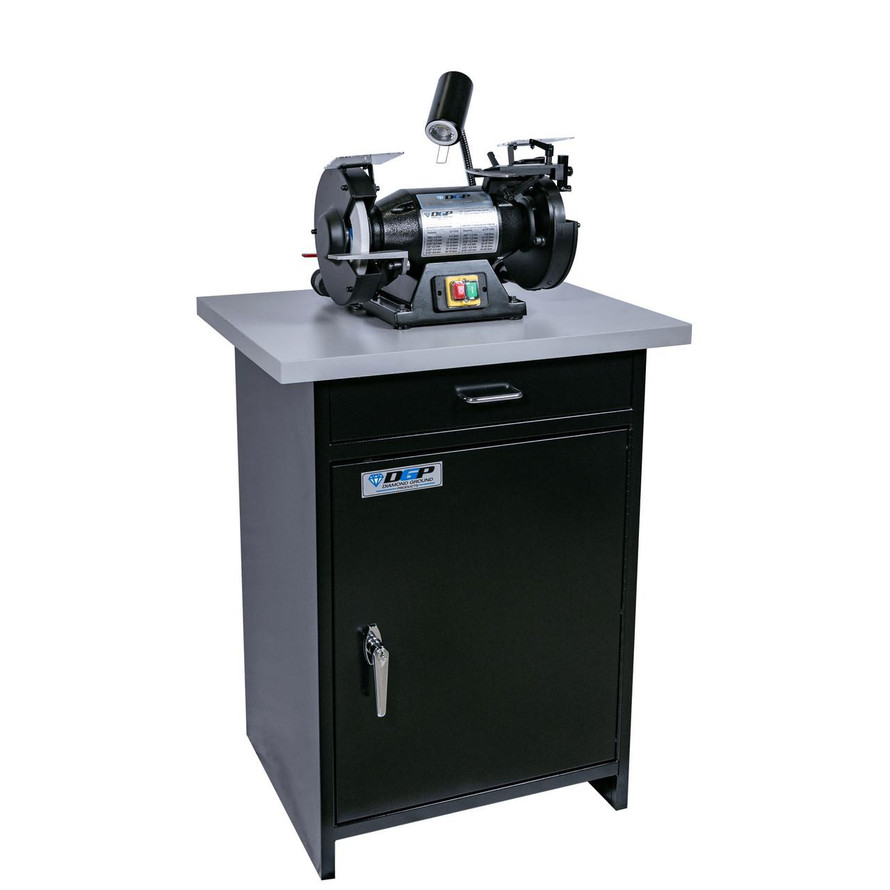

Production Level Tungsten Grinding Station

The DGP-1 is a pedestal style grinding machine engineered to precision diamond Grind TIG & Plasma Arc Welding electrodes. The grinder produces longitudinal grind angles from 6˚- 120˚ with a 20RMS finish and + / - 1/2˚ angle tolerance. The DGP-1 also has an all-purpose aluminum oxide grinding wheel.  Unlike the DGP-2 and the DGP-3 tungsten grinding stations, the DGP-1 cannot cut tungsten electrodes to length. Made in U.S.A. by Diamond Ground Products.

This robust & easy to use machine has everything needed to produce high-quality precision diamond Ground & Cut-to-Length tungsten welding electrodes.

Note: Dust Free Vacuum System Available

Your Choice of Four Collets Sizes:
The grinder comes standard with .040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm), & 1/8" (3.2mm) collets.  Additional 5/32" (4.0mm) & 3/16" (4.8mm) collets are available or can be substituted in place of the standard sizes.

Dimensions: 21.5" L x 12" D x 12 H (564mm) x (305mm) x (305mm)
Weight: 27.2lbs. / 12.kg
Voltage: 115 VAC, 60Hz or 220 VAC 50Hz optional.
Amperage: 5.0 Amps.

More Information:

  • Grinding Tungsten: .pdf
  • DGP Series Tungsten Grinders: .pdf
View AllClose

Additional Information

Grinder Style:
Benchtop
Electrode Diameters:
.040" (1.0mm)
Electrode Diameters:
1/16"(1.6mm)
Electrode Diameters:
3/32"(2.4mm)
Electrode Diameters:
1/8" (3.2mm)
Electrode Diameters:
5/32" (4.0mm)
Electrode Diameters:
3/16" (4.6mm)
Electrode Diameters:
1/4" (6.0mm)
Weld Type:
Plasma
Weld Type:
TIG
Product Type:
Tungsten Grinder
Job Type:
Welding
