Description

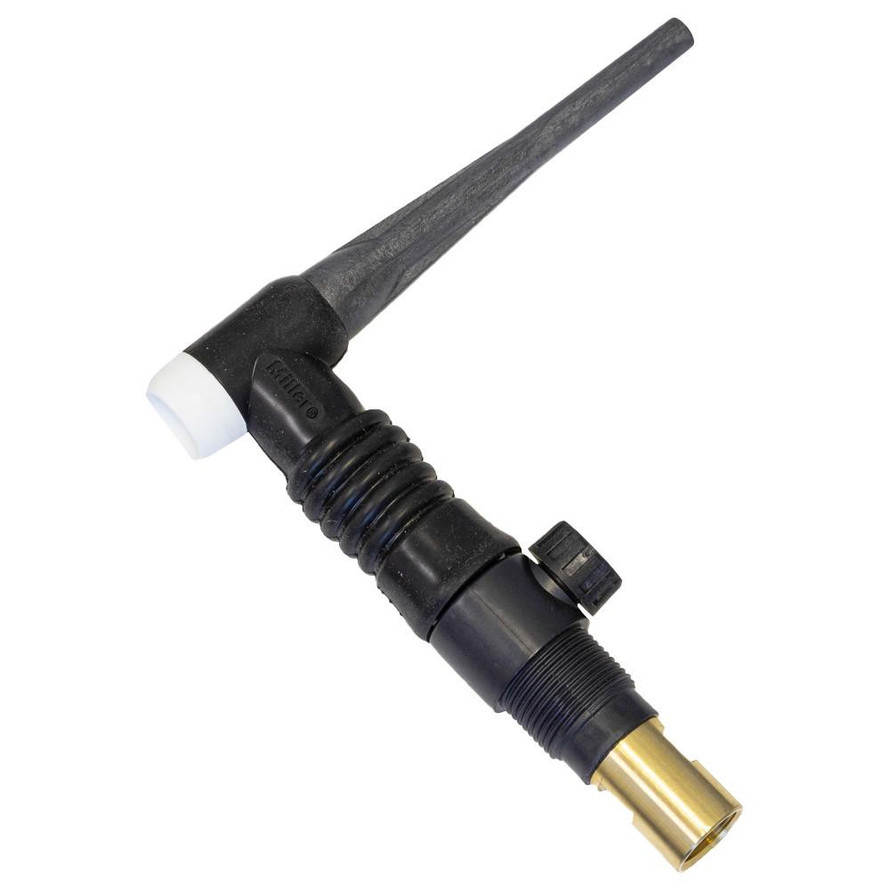

A-200 Flex (WP-26F)
General purpose 200 Amp Air-Cooled TIG Torch Body With Flexible Head and built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The WP-26F is a well-balanced, general use torch body. Complete torch packages include one-piece, heavy duty rubber power cable.
| Specifications: | A-200 Flex Valve (WP-26FV) | |||
|---|---|---|---|---|
| Amperage | 200A DCSP, 150A ACHF @ 60% Duty Cycle | |||
| Air-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 10 oz. (283.4g) | |||
| Torch length | 8-1/2" (215.9mm) | |||
| Handle diameter | 1-1/4" (31.7mm) | |||
| Power Connection | Torch: 5/8"-18RH Male | Machine: 7/8"-14RH Male | ||
| Part # | WP-26FV | WP-26FV-HDL | WP-26FV-12-R | WP-26FV-25-R |
| Handle | N/ | 10N15R | 10N15R | 10N15R |
| Cable Type | N/A | N/A | One-Piece | One-Piece |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Additional Information
TIG Torch Type: |
Gas / Air Cooled |
TIG Process: |
Hand Held |
Torch Model: |
26 Style |
Amperage Rating: |
150 - 200 Amp |
