Description
CK-100V

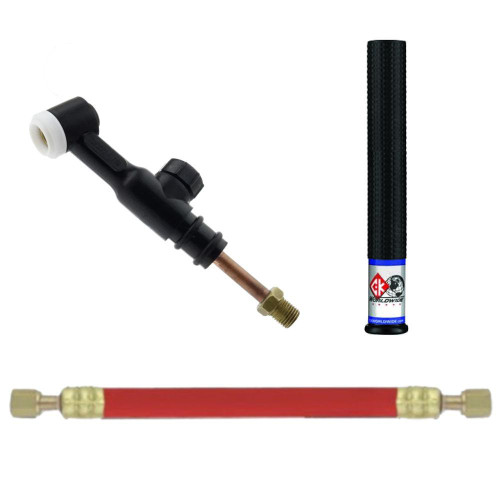

The CK-100V series is a well-balanced, lightweight torch body with built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The CK-100 is designed for welding thin gauge materials and is small enough to get into confined areas like tube clusters, tanks, manifolds, and is great for sheet metal repairs etc. Torch package includes One-Piece SuperFlex Power Cable.
| Specifications: | CK-100V | |||
|---|---|---|---|---|
| Amperage | 125 amp ACHF or DCSP @ 100% | |||
| Air-Cooled body | 70º head with Gas Valve | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 1 oz. (28.3g) | |||
| Torch length | 7.63" (193.8mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | Torch: 3/8"-24RH Female | Machine: 3/8"-24RH Female | ||
| Part # | CK-100V | CK-100V-HDL | CK-112VHSF | CK-125VHSF |
| Handle | N/A | CK-200H | CK-200H | CK-200H |
| Cable Type | N/A | N/A | One-Piece Super FLex | One-Piece Super Flex |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Additional Information
TIG Torch Type: |
Gas / Air Cooled |
TIG Process: |
Hand Held |
Torch Model: |
9 Style |
Amperage Rating: |
100 - 130 Amp |
