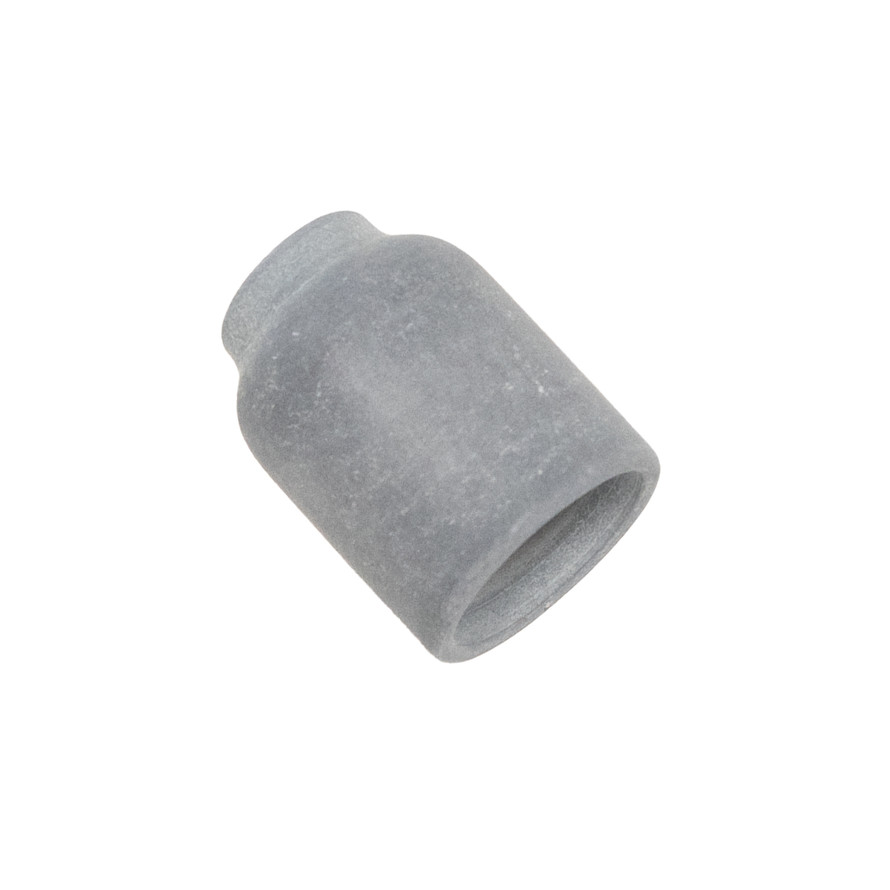

Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)

Click to see larger version of Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)

Starting at:  $11.74

  Qty.
*Minimum Qty: 2 *Minimum Increments: 2
Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)
Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)
Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)
Share: Share on Facebook Share on Google+ Share on Twitter Pin It to Pinterest

Product Description

CK-2SG- (select size from drop down menu)

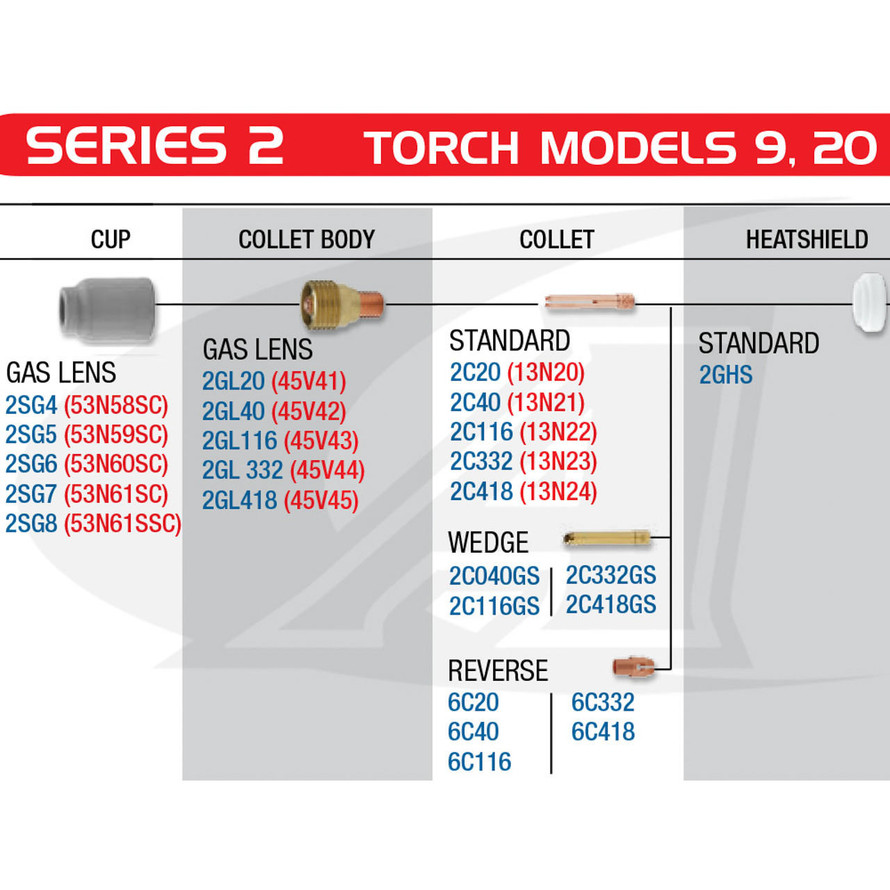

Part # Cross Reference Size Orifice Diameter Length
CK-2SG4 53N58HPN #4 1/4" (6.3mm) 1" (25.4mm)
CK-2SG5 53N59HPN #5 5/16" (7.9mm) 1" (25.4mm)
CK-2SG6 53N60HPN #6 3/8" (9.5mm) 1" (25.4mm)
CK-2SG7 53N61HPN #7 7/16" (11.1mm) 1" (25.4mm)
CK-2SG8 53N61SHPN #8 1/2" (12.7mm) 1" (25.4mm)

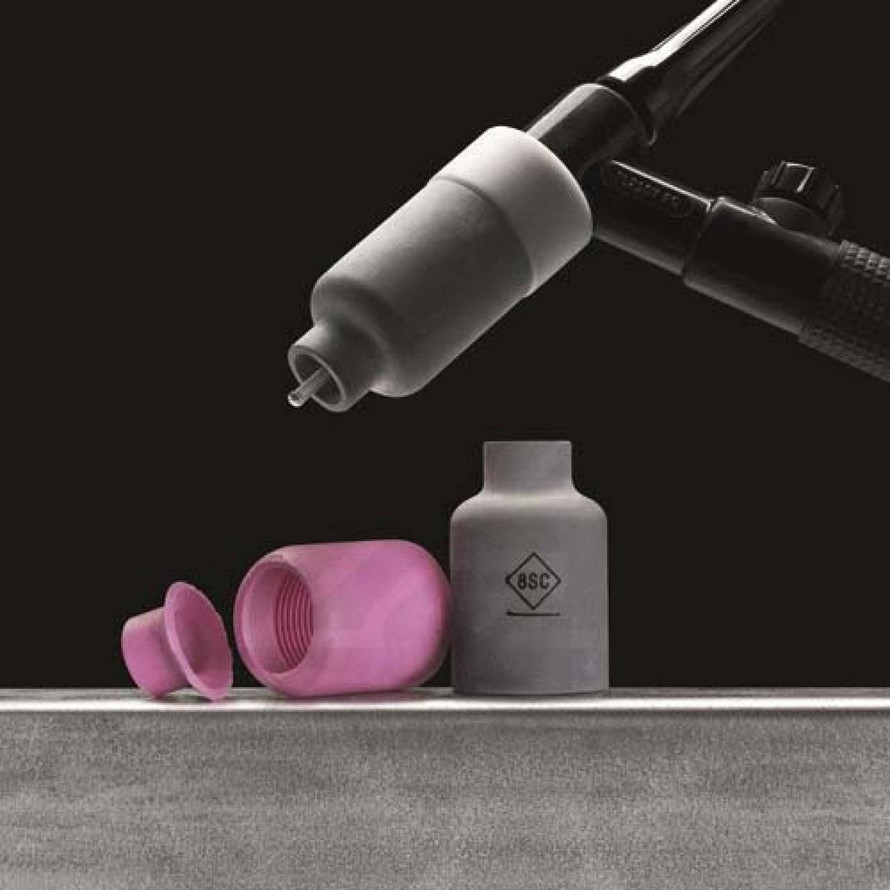

New TIG Super Cups!  These high performance TIG nozzles reduce thermal conductivity (heat transfer) by nearly 40%, when compared to standard Pink Alumina nozzles.  Made from modern advanced materials, these Silica-Nitride gray colored cups are oven cured in a pure nitrogen environment to promote a much denser grain structure.  Super Cups eliminate the potential for thermal shock which results in standard cups cracking, splitting and melting when exposed to high AC amperage TIG welding jobs.

Now you can run your balled up tungsten flush with the cup orifice and keep the cup size tight for maximum cleaning and gas ionization which is key to quality Aluminum TIG welding jobs.

Genuine Super Cups are engineered to work with all popular TIG torches.

Priced Individually; Sold in Packages of 2ea.

Back To Top

Frequently Bought Together

Back To Top

Customers Also Purchased

Customer Reviews

  • 5 star 1
  • 4 star 0
  • 3 star 0
  • 2 star 0
  • 1 star 0

Average Customer Rating for:

Gas Lens Super Cups #4 - #8 For Series 2 (9/20/CS310)

5 of 5 Stars! (1)

5 out of 5 stars


Added:  by

5 of 5 Stars!
High temp cup have been great with welding 1” inch thick stainless at 220 amps
