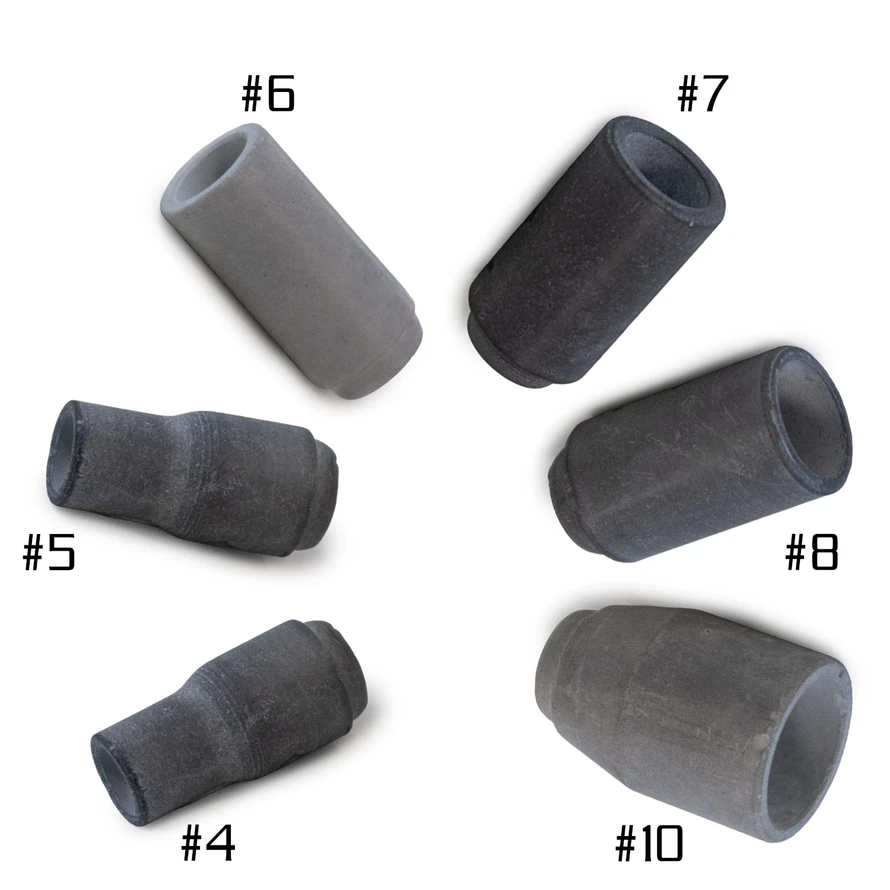

Super Cups #4 - #10 For Series 2 (9/20/CS310)

Super Cups #4 - #10 For Series 2 (9/20/CS310)

Order Fulfillment
Ask a Question
Shipping and Returns

Qty.
*Minimum Qty: 2 *Minimum Increments: 2
Share: Share on Facebook Share on Twitter Pin It to Pinterest
Super Cups #4 - #10 For Series 2 (9/20/CS310)
Super Cups #4 - #10 For Series 2 (9/20/CS310)
Super Cups #4 - #10 For Series 2 (9/20/CS310)

CK-2S- (select size from drop down menu)

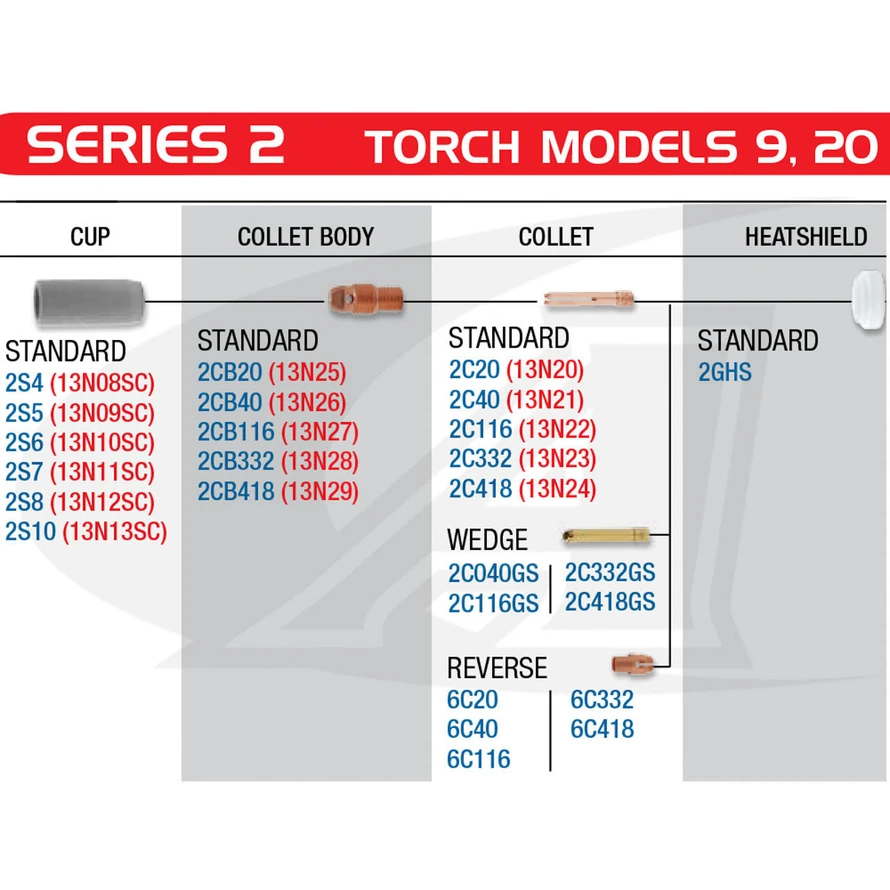

Part # Cross Reference Size Orifice Diameter Length
CK-2S4 13N08HPN #4 1/4" (6.3mm) 1-5/32" (29.4mm)
CK-2S5 13N09HPN #5 5/16" (7.9mm) 1-5/32" (29.4mm)
CK-2S6 13N10HPN #6 3/8" (9.5mm) 1-5/32" (29.4mm)
CK-2S7 13N11HPN #7 7/16" (11.1mm) 1-5/32" (29.4mm)
CK-2S8 13N12HPN #8 1/2" (12.7mm) 1-5/32" (29.4mm)
CK-2S10 13N13HPN #10 5/8" (15.9mm) 1-5/32" (29.4mm)

New TIG Super Cups!  These high performance TIG nozzles reduce thermal conductivity (heat transfer) by nearly 40%, when compared to standard Pink Alumina nozzles.  Made from modern advanced materials, these Silica-Nitride gray colored cups are oven cured in a pure nitrogen environment to promote a much denser grain structure.  Super Cups eliminate the potential for thermal shock which results in standard cups cracking, splitting and melting when exposed to high AC amperage TIG welding jobs.

Now you can run your balled up tungsten flush with the cup orifice and keep the cup size tight for maximum cleaning and gas ionization which is key to quality Aluminum TIG welding jobs.

Genuine Super Cups are engineered to work with all popular TIG torches.

Priced Individually; Sold in Packages of 2ea.
