Tungsten Grinder DIY Head Kit -- No Motor --

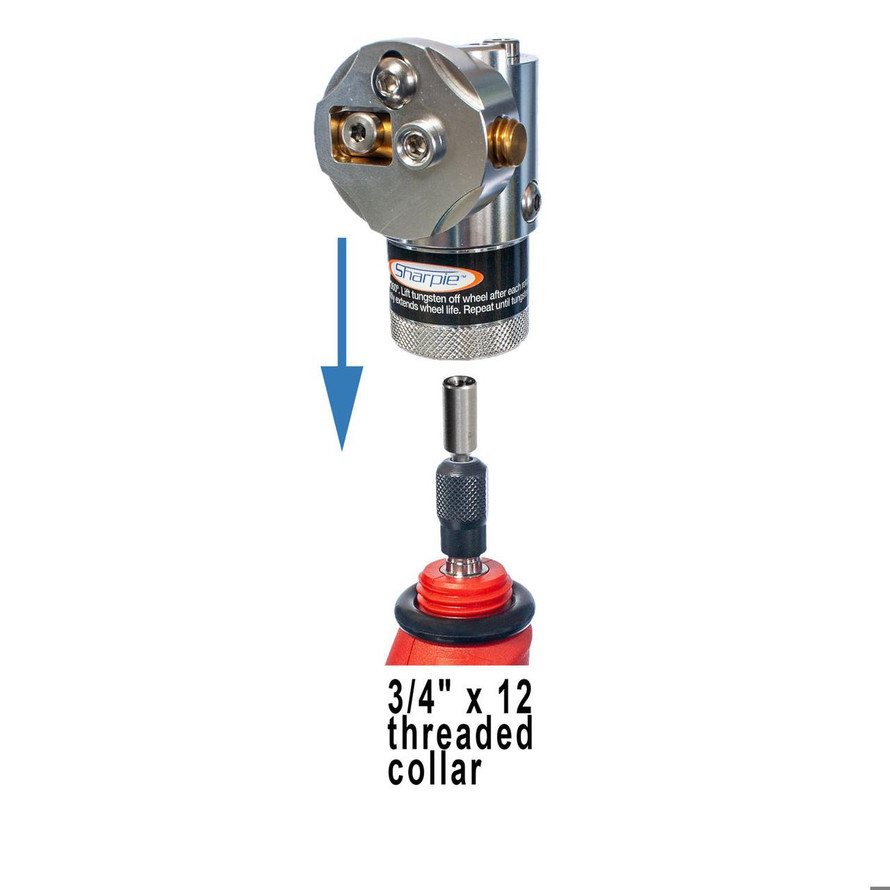

The Sharpie DX™ tungsten electrode grinding head kit (motor sold separately) is designed to fit on popular US and Import die grinder motors with a 3/4" x 12 male thread collar.

  • 3/4" x 12 threaded female mounting base
  • 15° -to- 45° adjustable grind angle head assembly
  • Cut-off slot
  • Tip Flat ports
  • Double sided industrial grade diamond grinding wheel
  • 1/16" (1.0mm), 3/32" (2.4mm) & 1/8" (3.2mm) collets
  • .040" (1.0mm) collet sold separately (Available in Pro Upgrade Kit)

We recommend the Milwaukee M12 cordless rotary tool (2460-21), or the Black & Decker RTX corded model (A-PTG-001) but there are many other suitable alternatives, including, but not limited to:

  • Milwaukee M12 Rotary Tool (2460-21)
  • Black & Decker RTX (A-PTG-001)
  • TECCPO Upgraded Rotary Tool
    ***Please use the reviews to help us build this list.  Let us know which brand of rotary tool you use, and how well it works!

The Sharpie DX™ head kit has an adjustable grind angle from 15° -to- 45° for virtually any TIG welding application.  The engineered head design allows for grinding, cutting, and adding a tip flat.  The Head Kit features on-board storage of the 1/16" (1.0mm), 3/32" (2.4mm), & 1/8" (3.2mm) collets (.040" (1.0mm) collet sold separately).

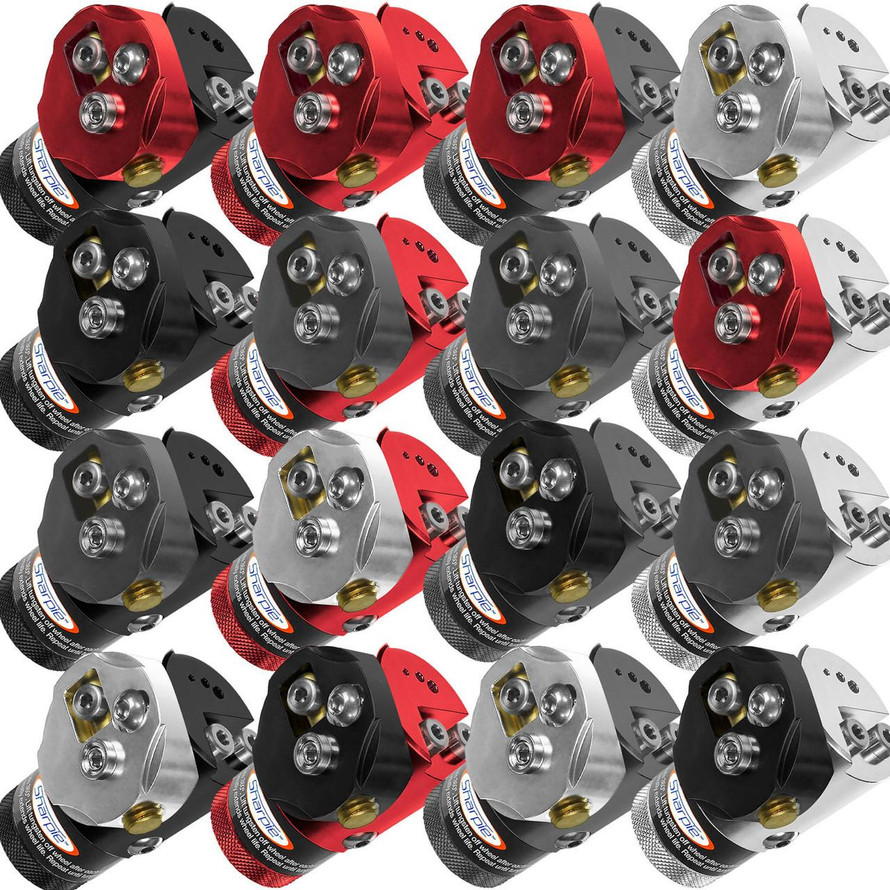

Build It Your Way™ with Anodized Head Colors (use drop down menus above)

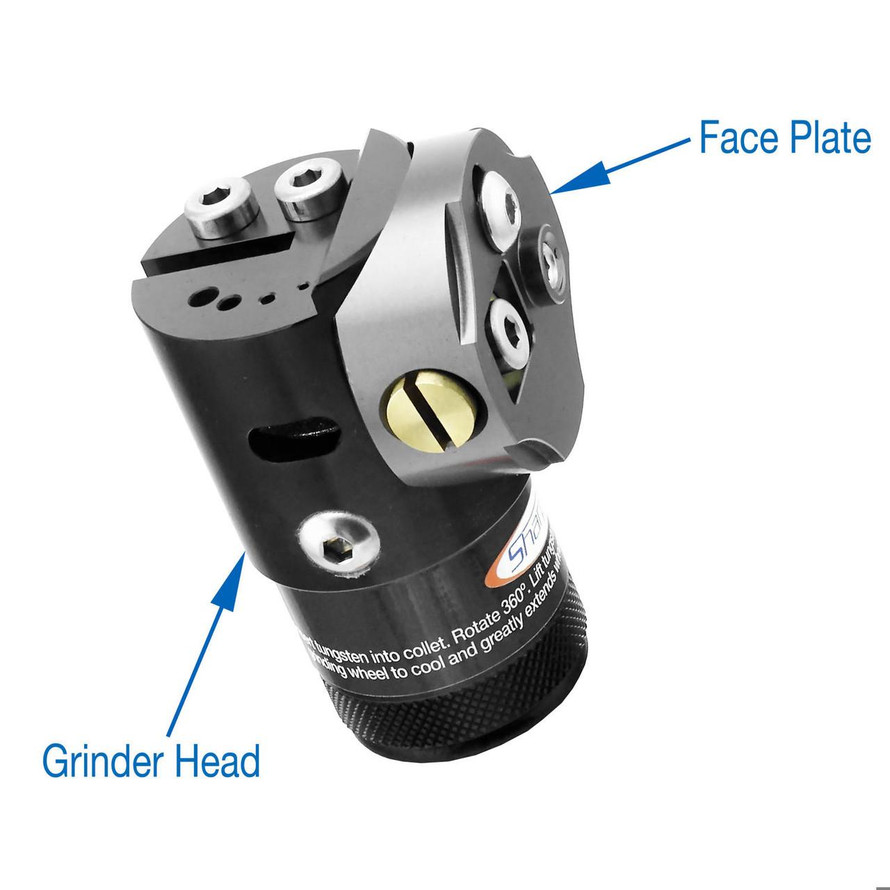

Grinder Head & Base Face Plate Sample
UltraBright Silver UltraBright Silver Cordless Sharpie DX Tungsten Grinder Adjustable 15 to 45 degree schematic picture
Tungsten Grey Tungsten Grey
Black Ops Black Ops
Auburn Red Auburn Red

Upgrade to a Pro Kit & Save 35% on Popular Accessories:

Included Accessories DX Grinding Head Only DX Pro Kit
Part Number A-PTGK-DHD A-PTGK-DHD-K
DX Grinding Head Kit
(15°-45° Adjustable Grind Angle)

.040" (1.0mm) Collet -

1/16" (1.6mm) Collet

3/32" (2.4mm) Collet

1/8" (3.2mm) Collet

Replacement Grinding Wheel -

Arc-Saber Tungsten Storage Container -

Pro Series TIG Calculator -

Precise Diamond Ground Tungsten:

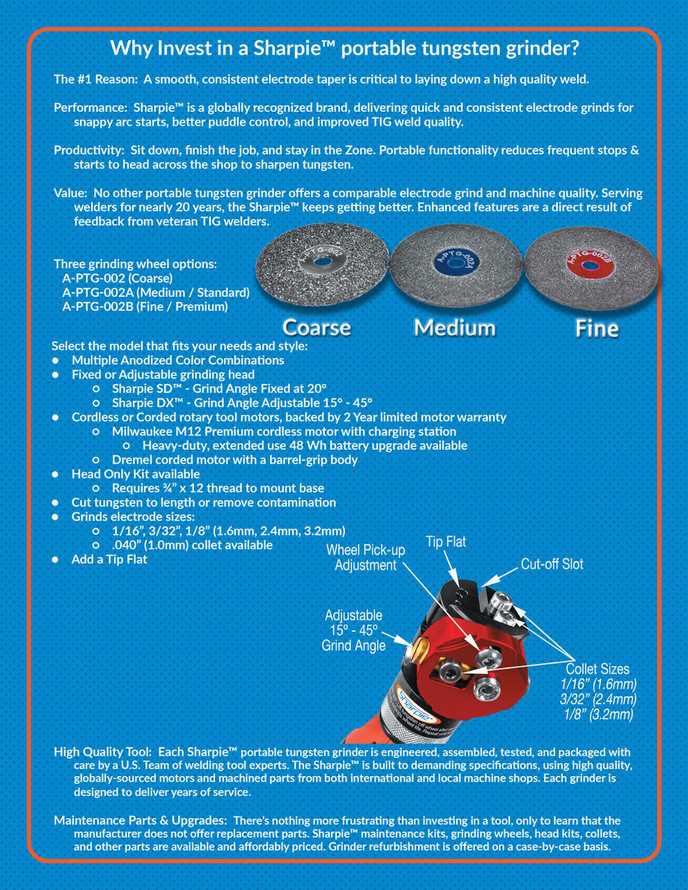

Sharpie grinders deliver quick and consistent electrode grinds for snappy arc starts, better puddle control and improved weld quality. The double-sided diamond wheel easily grinds tungsten electrode sizes, .040"**, 1/16", 3/32" and 1/8" (1.0mm, 1.6mm, 2.4mm and 3.2mm). **Note: .040" (1.0mm) collet sold separately.

High Quality Tool:
You are investing in a quality product that will deliver years of service. Each Sharpie is built to demanding specifications, & the majority of the machined parts are made in the USA!

Tip Flat Option:
Tungsten electrodes ground to a sharp point are proven to burn off and cause inclusions in your weld. By Removing the point & adding a tip flat, you get better arc starts, longer electrode tip life & reduced weld contamination.

Cut-Off/Score Option:
The built-in cut-off or scoring option allows you to cut & remove only contaminated portions of the electrode. No more bending or breaking electrodes which causes splintering of the tungsten, reducing electrode performance.

Safe & Easy To Use:
Set your machine up for the job at hand & grind electrodes in the shop or in the field. Enclosed grinding wheel eliminates safety issues common with "side" or "wheel" grinders which can grab the electrode and shoot it back at the operator.

Save Time & Money:
Diamond ground electrodes reduce tungsten consumption and waste. Stop wearing out belts on your sander & grinding deep grooves in your bench grinder wheels. Your shop will be cleaner, safer and more productive. The reversible long-life diamond wheel means low replacement part costs.

Weld Like A Pro Tip
Frequently re-grinding worn electrode tips improves weld quality & lowers tungsten usage. Waiting until the tip is completely eroded or contaminated, requires grinding off more tungsten material, resulting in higher tungsten usage, costing you time & money.

Specifications:

Minimum Tungsten Grind Length 1-1/4” (31.7mm)
Adjustable Grind Angle From 15° - 45°
Recommended Motor
No Load RPM
5,000-32,000

Learn More:

  • Sharpie Operation Manual: .pdf
  • Sharpie Installation Guide: .pdf
  • Sharpie Replacement Parts List: .pdf
  • Tungsten Grinder Selector: .pdf
  • Grinding Tungsten: .pdf

Hand-Held Tungsten Grinders with Anodized Head Colors, High-Capacity 4.0AH Batteries & 220V Chargers are Copyright © Arc-Zone.com Inc. All Rights Reserved.

Report incorrect/unclear product info

Back To Top

Frequently Bought Together

Back to Top

Customers Also Purchased

Customer Reviews

  • 5 star 8
  • 4 star 0
  • 3 star 0
  • 2 star 0
  • 1 star 0

Average Customer Rating for:

Sharpie DX™ Head Only DIY Tungsten Grinder Kit, ADJ 15°- 45°

5 of 5 Stars! (8)

5 out of 5 stars

See All 8 Customer Reviews

Added:  by

5 of 5 Stars!
Just got my order. Superb build quality and works pretty much as expected.

I use it with a Bosch GRO 12V-35 and it fits well. If you happen to use the same machine leave a 5.7mm gap instead of the 1.6mm in step #2 in the instruction manual to safe you some time to going back and forth to adjust the disk height.

Added:  by

5 of 5 Stars!
Really great product! It's a lot faster than using a bench grinder.

Added:  by

5 of 5 Stars!
Great product at a great price, I could not be happier with my purchase.

Added:  by

5 of 5 Stars!
Real time saver, very fast and consistent grinding well worth it for anyone who tig welds

Added:  by

5 of 5 Stars!
Will up my game on sharpening, saw an immediate improvement in arc starts and faster too.
