1,500 Amp Rotary Grounds

Click to see larger version of 1,500 Amp Rotary Grounds

Starting at:  $665.05

  Qty.
1,500 Amp Rotary Grounds
1,500 Amp Rotary Grounds
1,500 Amp Rotary Grounds
1,500 Amp Rotary Grounds

Product Description

Model "R-4C" Rotary Clamp W/ C-Clamp (Select Style From Drop Down Menu Above)

Part # Amperage Cable Capacity Connection Type Jaw Opening Throat Depth Weight
LEN-R-4C (02200) 1,500 Amp 3/0 - 4/0 (70mm2-95mm2) (4) Double Oval-Point Screws -- -- 23 lbs (10.4kg)
LEN-GR-4C (02220) 1,500 Amp 3/0 - 4/0 (70mm2-95mm2) (4) Double Oval-Point Screws 3" (76.2mm) 3" (76.2mm) 33 lbs (15.4kg)

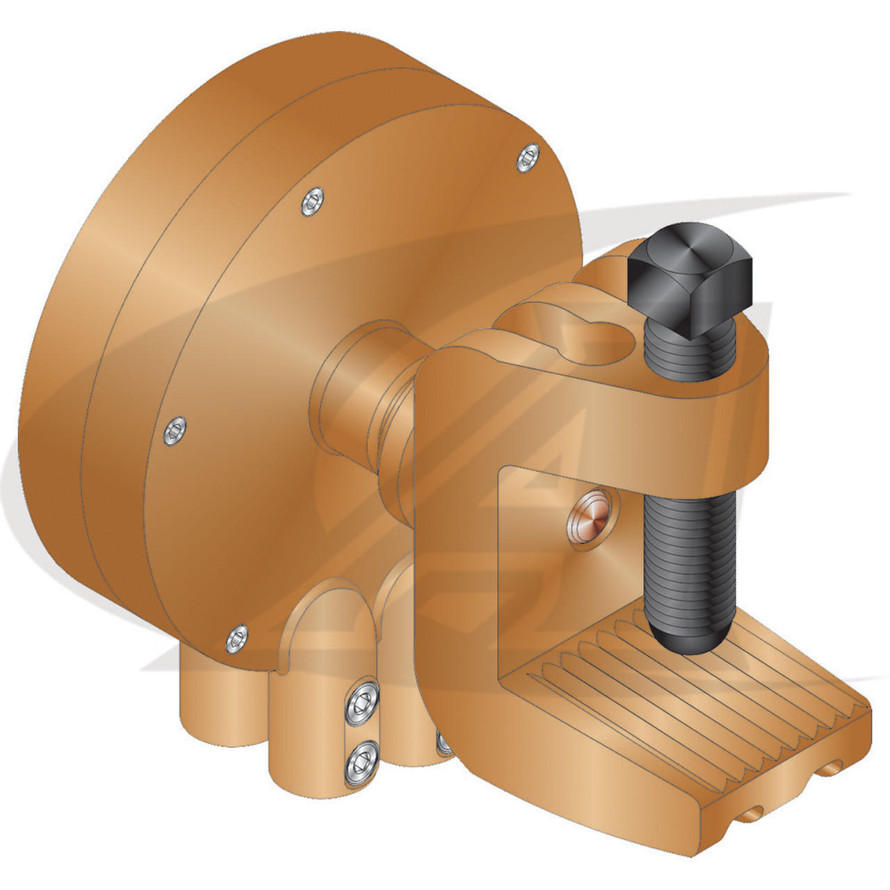

The Heavy Duty Lenco R-4C rotary ground has a 3/4"-10 threaded shank for attaching direcly to the work piece, or for attaching to other Lenco C-Clamps, like the LEN-G-1500-34 or LEN-RBG1500-34.
