500 Amp Rotary C-Clamp Grounds


Order Fulfillment
Ask a Question
Shipping and Returns

Qty.
Share: Share on Facebook Share on Twitter Pin It to Pinterest


Model "C" Rotary Clamp W/ C-Clamp (Select Clamp Size From Drop Down Menu Above)

Part # Amperage Cable Capacity Connection Type Jaw Opening Throat Depth Weight
LEN-MIG-600-C (02130) 500 Amp 3/0 - 4/0 (70mm2-95mm2) Two Oval-Point Screws W/ Cover 2" (51mm) 2-1/8" (54mm) 7 lbs (3.2kg)
LEN-GC-500 (02120) 500 Amp 3/0 - 4/0 (70mm2-95mm2) Two Oval-Point Screws W/ Cover 3-3/8" (85.7mm) 2-1/2" (64mm) 8 lbs (3.6kg)

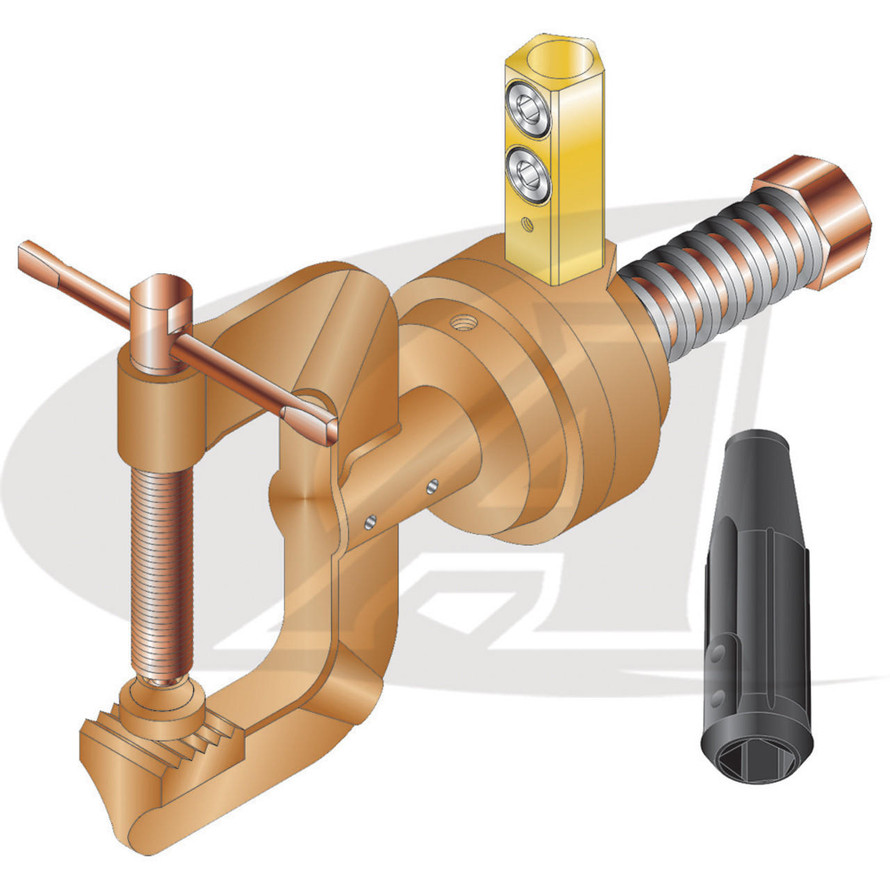

Field tested & proven, the LEN-MIG-600-C and the LEN-GC-500 are combinations of the Lenco Model "C" rotary ground clamp with Lenco C-Clamps.  Both models are designed to make it easy to attach the rotating portion of the work.  The units come completely assembled, ready to attach to the work.
