Arc-Zone Pro

MonsterCup™ Pro Kit: 9, 20 & 2 Series

(8 reviews) Write a Review
UPC:
610563034901
MPN:
A-MNPRO-2-116
Minimum Purchase:
1 unit
  • Arc-Zone Pro MonsterCup™ Pro Kit: 9, 20 & 2 Series
  • Arc-Zone Pro MonsterCup™ Pro Kit: 9, 20 & 2 Series
  • Arc-Zone Pro MonsterCup™ Pro Kit: 9, 20 & 2 Series
  • Arc-Zone Pro MonsterCup™ Pro Kit: 9, 20 & 2 Series
  • Arc-Zone Pro MonsterCup™ Pro Kit: 9, 20 & 2 Series
$158.88 - $164.88

Description

A-MNPRO-2

MonsterCup™ Pro Kit (Select Electrode Size From Drop Down Menu Above)

MonsterCup™ TIG Nozzle Kit.  #12, #14, #16 & #24 gas cups and accessory parts for your A125 (WP-9), W250 (WP-20), W280 (CS310) and CK 2 Series TIG torches.

Everything needed in one convenient high-quality kit box. Step up your DC TIG welding game. Monster™ nozzles are engineered for professional fabricators that want the absolute best gas coverage, and the ability to run a long electrode stickout.

If you're welding exotic materials such as Titanium, Inconel, Hastelloy, Monel, Stainless Steel, Chromoly, Docol R8, etc., then these cups may be exactly what you need to improve gas coverage, arc stability, tungsten stick-out, and visibility. Monster™ Nozzles are used by top metal fabricators worldwide!

A-MNPRO-2™ Kit Includes:
One Ea. MonsterCup™ #12 = 3/4" (19.0mm) Gas Orifice with Diffuser Installed
One Ea.MonsterCup™ #14 = 7/8" (22.2mm) Gas Orifice with Diffuser Installed
One Ea. MonsterCup™ #16 = 1" (25.4mm) Gas Orifice with Diffuser Installed
One Ea.MonsterCup™ #24 = 1-1/2" (28.5mm) Gas Orifice with Diffuser Installed

Two Ea. High Performance Wedge Collet
Two Ea. Gas Lens Collet Bodies
One Ea. Teflon Nozzle Gasket
Three Ea.  ArcTime™ Premium Hybrid Non-Radioactive Tungsten Electrodes
One Ea. Short "Button" Back Cap
One Ea. Medium Back Cap
One Ea. Spare Back Cap O-Ring
One Ea. Gas Flow Tester
One Ea. EZ Wipe Weld Prep Cleaning Packet
PLUS:  TIG Welding Calculator
Joe Welder's™ "Guide to Optimizing Your TIG Torch", "How-to-Select" & "How-to-Grind" Your Tungsten Electrodes

MonsterCup Quality Materials & Assembly

  • MonsterCup™ is made of a durable, non-reactive ZTA (Zirconia Toughened Alumina) technical ceramic
  • Proprietary gas diffuser and tungsten guide is precision-machined from 316L stainless steel (no dissimilar metals)
  • Thread-on nozzle design for solid torch mounting, cup securely seals to Teflon heat shield, No o-rings, No gas leaks, No high-freq arc-outs
  • Readily available from Arc-Zone.com or your local gas supplier
  • Fair pricing for a high-quality product

MonsterCup™ Best Practices, Set-Up Tips, Do's & Don'ts!

  • MonsterCup™ works best with Arc-Zone's high-quality gas lens collet bodies.
  • MonsterCup™ is designed for Argon flow rates between 15-30 CFH (cubic feet hour).
  • Do Not Exceed 175 amps for extended periods of time!
  • MonsterCup™ is Not designed for welding with AC current!
  • Minimum tungsten stickout of 3/4" (19mm) -- Shorter stickout may result in damage to the screen stack.
  • Use a medium or short back cap. (Long back caps are known to trap atmosphere in the top of the cap).
  • Do not adjust the positioning, or modify the Screen Stack in any way.

MonsterCup™ nozzles are designed for precision TIG welding applications where increased shield gas coverage and tungsten stickout are needed. They are not designed for heavy-industrial pipe welding applications.

Arc-Zone does not make any claims or guarantees of weld-quality improvements, or level of shield gas coverage. Results may vary, due to: weld station set-up, material preparation, gas quality, gas flow rates, flow meter type, gas hose material, welding machine, TIG torch, operator’s torch handling technique, etc.

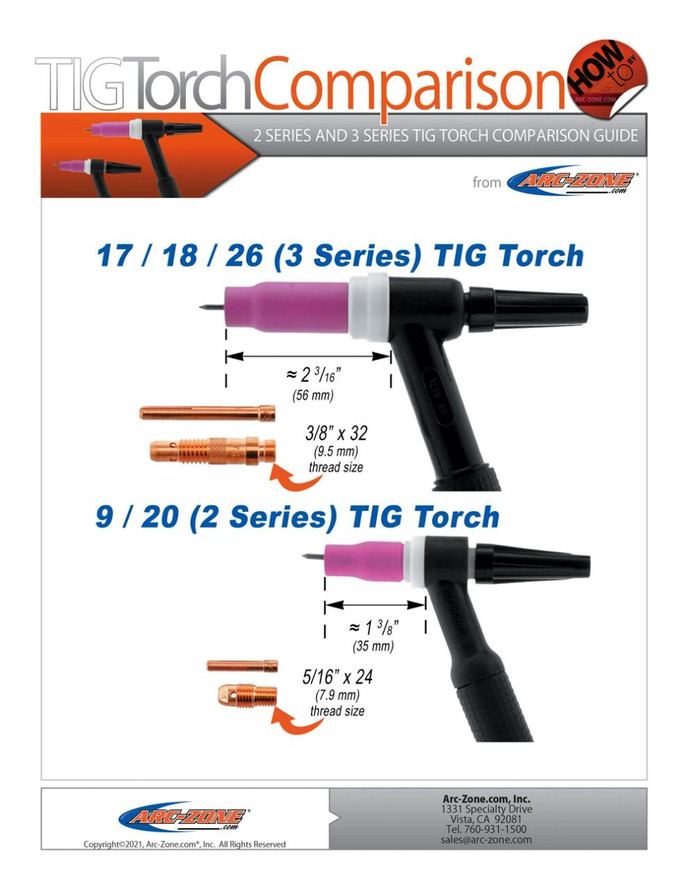

Compatible with popular TIG torch models including: A125 (WP-9), W250 (WP-20), W280 (CS310) and CK 2 Series.

View AllClose

Additional Information

Parts Style:
Monster
Torch Model:
20 Style
Torch Model:
9 Style
Torch Model:
CS310
Torch Model:
CK-100/130
Torch Model:
CK-200
Torch Model:
CK-230
Torch Model:
22 Style Machine Torch
View AllClose

8 Reviews

  • 5
    The ordering process was simple and efficient and…

    Posted by Shawn L. on Jan 22nd 2021

    The ordering process was simple and efficient, and the parts were delivered very quickly.

  • 5
    Great product cant wait to try it out very…

    Posted by Jerry R. on Dec 4th 2020

    great product cant wait to try it out very complete kit

  • 5
    A good assortment of quality products. The…

    Posted by Gregg G. on Feb 6th 2019

    A good assortment of quality products. The monster nozzles are awesome , and everything you need to use them is included.

  • 4
    One of the cups I bought was chipped already! But…

    Posted by Josh W. on Mar 14th 2018

    One of the cups I bought was chipped already! But love the cups overall. ___________________________ Thanks for the feedback, Josh. Our customer service is happy to take care of that for you; we take pride in packing each box, so we hate to hear when everything doesn't arrive in great shape.

  • 5
    The quality of the monster cup kit is just…

    Posted by Nick B. on Mar 9th 2018

    The quality of the monster cup kit is just amazing. I'm very happy with the monster kit. Would definitely recommend picking up a kit if you are in the market for some badass tig cups.

  • 5
    Great for multiple tube intersections on cages…

    Posted by Richard T. on Nov 23rd 2017

    Great for multiple tube intersections on cages also seems good with ally.

  • 5
    A great kit for pro welders or beginning welders.…

    Posted by Thomas P. on Jan 5th 2017

    A great kit for pro welders or beginning welders. The argon coverage is excellent. The arc time tungsten do the job sharp arc. The flow meter gives you accurate numbers .

  • 5
    Ive used the monster nozzle for a week straight…

    Posted by Wes Mishler on Apr 13th 2014

    Ive used the monster nozzle for a week straight now and I'm impressed. I weld a lot of 14ga and 10ga 304l stainless in multiple positions and joint fit up and this cup has given me excellent gas coverage for everything that I've used it on. In fact I've never used a cup set up that has ever gave me such good gas coverage. I do a lot of weaving on wide welds and I always was never happy with my #8 gas lens gas coverage but the monster nozzle was able to cover my wide weave welds and the results I couldn't be happier with. A few advantages of the monster nozzle are that is has a simple construction which makes ordering replacement parts easy and also it uses a standard collet and gas lens. Another great thing is that the monster nozzle has is the price point. For the $33.50 you pay its the best bang for your buck on the market. The monster nozzle would be a great advantage to anyone that welds on stainless steel, titanium or steel if a long tungsten stick out is required. It is a great everyday tool for anyone that Tig welds on weldments that have to be aesthetically pleasing. This monster nozzle is very versatile also. It can be used with multiple types of materials and positions. I even put this nozzle to the test on Arc Zones DIY semi-automation kit with great results. In conclusion, I would highly recommend the Monster Nozzle kit to anyone that Tig welds on stainless steel, titanium or steel that requires a long tungsten stick out and wide gas coverage. The price of $33.50 can't be beat and its uses are awesome. If you want to see the Monster Nozzle in action or the welds it produces check me out on Instagram @Wicked_Welding
