Arc-Zone Pro

Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE

(7 reviews) Write a Review
MPN:
A-MN14-2-116
Minimum Purchase:
1 unit
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
  • Arc-Zone Pro Monster14 Gas Lens Kit: 9, 20 & 2 Series, Buy 2 Cups & SAVE
$40.25 - $65.25

Description

Monster14™ Cup Kit (9/2 Series Torches) SAVE Over $15 When You Purchase 2 Cups With Your Gas Lens Kit
(Select Electrode Size & Quantity From Drop Down Menu Above)

Monster14™ Nozzle & Gas Lens Kit. #14 = 7/8" (22.2mm) Orifice x 1" (25.4mm) Long. Engineered to deliver a coherent stream of shielding gas for improved weld-quality and consistency.

If you're welding exotic materials such as Titanium, Inconel, Hastelloy, Monel, Stainless Steel, Chromoly, Docol R8, etc., then these cups may be exactly what you need to improve gas coverage, arc stability, tungsten stick-out, and visibility. Monster™ Nozzles are used by top metal fabricators worldwide!

Kit Includes:

Part # A-MN14-2-116 A-MN14-2-116X2 A-MN14-2-332 A-MN14-2-332X2
Monster14™ Cup
w/ Varying Mesh Diffuser
1 2
(20% Savings)
1 2
(20% Savings)
Gas Lens 1/16" (1.6mm) 1/16" (1.6mm) 3/32" (2.4mm) 3/32" (2.4mm)
Wedge Collet 1/16" (1.6mm) 1/16" (1.6mm) 3/32" (2.4mm) 3/32" (2.4mm)
Teflon Insulator 1 1 1 1
Short Back Cap 1 1 1 1
Medium Back Cap 1 1 1 1

Note: To ensure optimal performance all Monster™ nozzle kits are built with Arc-Zone's Performance Proven™ TIG torch parts.

  • Monster14™ nozzles are made of durable, non-reactive ZTA (Zirconia Toughened Alumina) ceramic with 316L stainless steel gas diffuser installed
  • Thread-on design securely seals to Teflon heat shield, No o-rings, No gas leaks, No high-freq arc-outs, No drama
  • Flow-tested Gas Lens Collet Body
  • Leak-tested Medium Back Cap
  • Leak-tested Short Back Cap
  • Heavy-Duty Wedge Collet
  • High Heat Glass Filled Teflon Insulator
    ***TIG Torch shown is Not Included and Sold Separately***

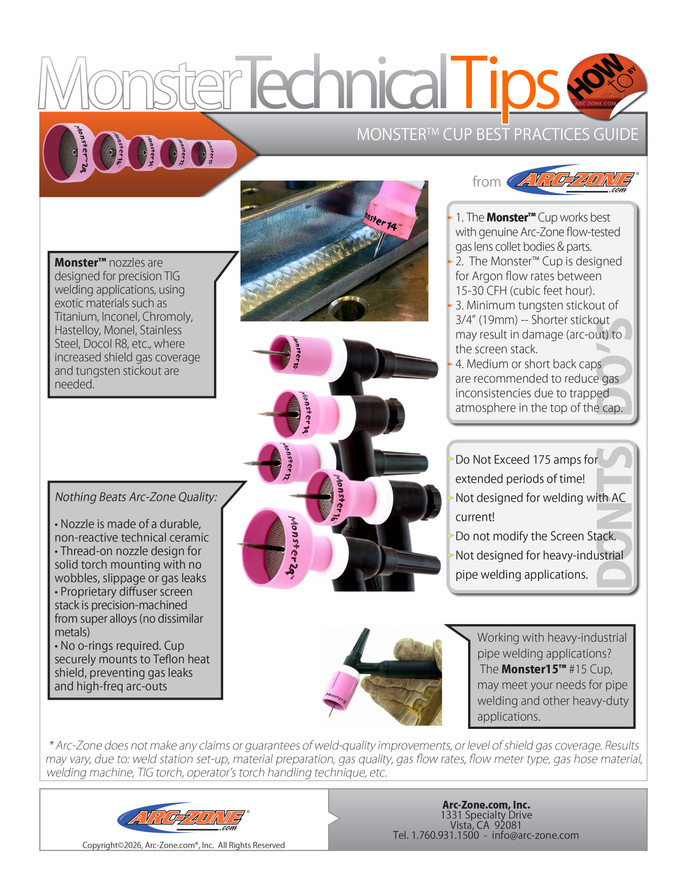

Monster™ Cup Best Practices, Set-Up Tips, Do's & Don'ts!

  • The Monster™ Cup works best with Arc-Zone's high-quality gas lens collet bodies
  • The Monster™ Cup is designed for Argon flow rates between 15-30 CFH (cubic feet hour)
  • Do Not Exceed 175 amps for extended periods of time!
  • The Monster™ Cup is Not designed for welding with AC current!
  • Minimum tungsten stickout of 3/4" (19mm) -- Shorter stickout may result in damage to the screen stack
  • Use a medium or short back cap ONLY. (Long back caps are known to trap atmosphere in the top of the cap)
  • Do not adjust the positioning, or modify the Screen Stack in any way

Monster™ nozzles are designed for precision TIG welding applications where increased shield gas coverage and tungsten stickout are needed. They are not designed for heavy-industrial pipe welding applications.

Arc-Zone does not make any claims or guarantees of weld-quality improvements, or level of shield gas coverage. Results may vary, due to: weld station set-up, material preparation, gas quality, gas flow rates, flow meter type, gas hose material, welding machine, TIG torch, operator’s torch handling technique, etc.

Compatible with popular TIG torch models including: A125 (WP-9), W250 (WP-20), W280 (CS310) and CK 2 Series.

View AllClose

Additional Information

Parts & Accessories:
Single Size Parts Kits
Parts Style:
Monster
Torch Model:
20 Style
Torch Model:
9 Style
Torch Model:
CS310
Torch Model:
CK-100/130
Torch Model:
CK-200
Torch Model:
CK-230
Torch Model:
22 Style Machine Torch
View AllClose

7 Reviews

  • 5
    Is this set up good for aluminum?? Im guessing…

    Posted by Hayden W. on Sep 27th 2021

    Is this set up good for aluminum?? I’m guessing not since it doesn’t recommend AC

  • 5
    My order arrived before expected delivery date…

    Posted by Kevin M. on Dec 12th 2020

    My order arrived before expected delivery date, excellent job! The Monster cup never fails to impress me. Best gas coverage, in my opinion, hands down.

  • 5
    This fit my torch perfectly! I used it on some…

    Posted by Galen B. on Sep 14th 2020

    This fit my torch perfectly! I used it on some silicon bronze welding for a home project and I weld outside. I had great argon coverage.

  • 5
    I'm a self taught hobby welder. I'm building a…

    Posted by Zachary S. on Nov 15th 2019

    I'm a self taught hobby welder. I'm building a car and had lots of stainless, aluminum, and chromoly to weld. I struggled with gas coverage on my stainless and chromoly welds. They always came out gray and oxidized no matter what settings, speed, torch position, or filler rods I tried. I got this monster lens and the very first stainless weld came out perfect!! Beautiful purples, blues, and salmon colors. This lens is awesome!!!

  • 5
    Great product! We use this when welding tubing.…

    Posted by Bryan G. on Sep 26th 2018

    Great product! We use this when welding tubing. It allows the welder to get into tight, deep places and get good electrode cleaning and clean looking welds.

  • 5
    Great cup has an awesome coverage area.

    Posted by Bryce D. on Nov 29th 2017

    Great cup, has an awesome coverage area.

  • 5
    Out of the Monster series nozzles the 14 is the…

    Posted by Wes M. on Dec 2nd 2016

    Out of the "Monster series" nozzles the #14 is the most versatile one. The size is about perfect for almost all of my stainless welding I do. When welding stainless, the only reason I might switch to a different cup would possible be a outside corner joint where the shielding gas doesn't puddle at all. in that case I would run either the Monster #16 or #24. The screen stack has to be the best aspect of this cup. It creates such a great diffused gas flow that allows for exceedingly long stick out if necessary. With such a great screen stack I feel as though I don't need to have my argon flow as high as i would have thought i would need to, I run between 20-30CFH depending on the application. If you want to see this cup in action check me out on Instagram @wicked_welding
