Dynaflux

Vertical Medium-Duty Water Cooler w/ Vane Pump & 115V US Motor

(No reviews yet) Write a Review
SKU:
DF-VH1000V-115
MPN:
VH1000V-115
Minimum Purchase:
1 unit
  • Dynaflux Vertical Medium-Duty Water Cooler w/ Vane Pump & 115V US Motor
  • Dynaflux Vertical Medium-Duty Water Cooler w/ Vane Pump & 115V US Motor
$907.69

Description

DF-VH1000V-115

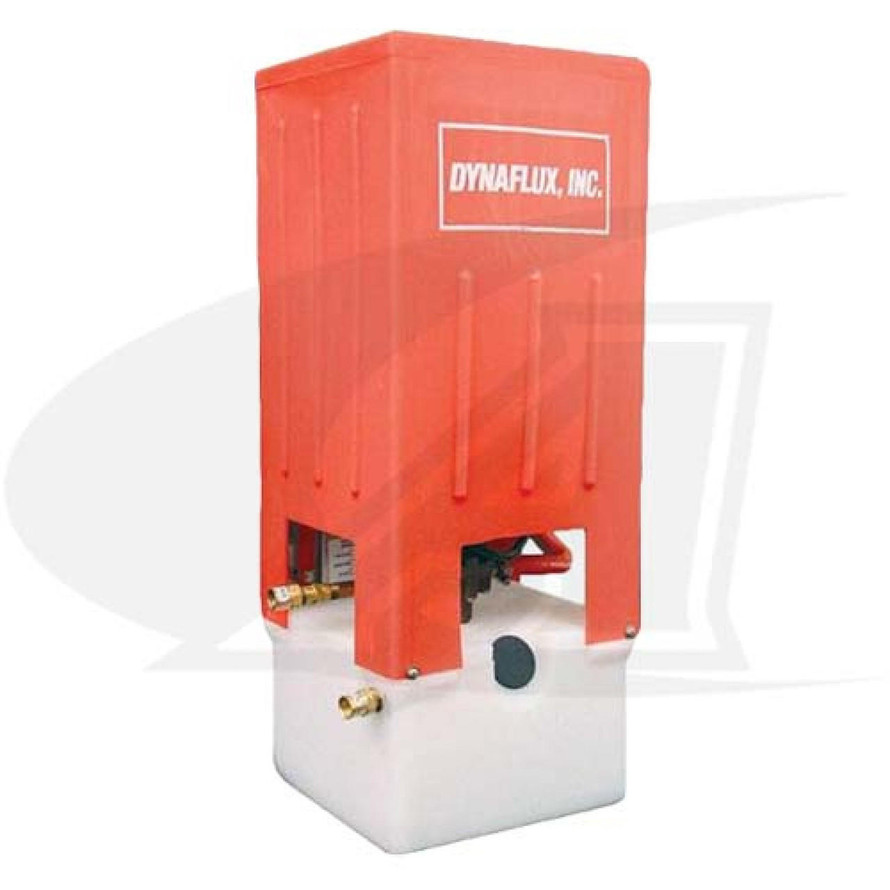

DynaFlu Vertical 2 Gallon Polyethylene Water-Cooler. Built with ProCon "Vane Style" Pump.  Designed for MIG guns and TIG torches up to 500 amps, Plasma Welders/Cutters up to 150 amps, and Resistance Welders up to 60 KVA.

Rated at 12,000 BTU, this Heavy-Duty Water Cooler is constructed with a rugged polyethylene reservoir holds that holds 2 gallons. Water level is visible through the tank. Plumbed with copper tubing and reinforced hoses, extended life pump features direct drive power system for reduced maintenance and vibration

Product Specifications:

  • Motor Voltage: 115 vac. Single phase 50/60 Hz
  • Pump: Vane style, factory set at 50 psi.
  • Adjustable to 80 psi
  • Reservoir:  2 gallon capacity
  • Net Weight:  42 lbs. / 19 kg
  • Dimensions:  9"L x 9"W x 26"H
  • Net Weight:  33 lbs (15kg)
  • Water In/Out: 1/4" FPT with 5/8"-18 LHF Fitting
  • BTU Rating:  12,000
  • MIG Guns:  Up To 500 Amps
  • TIG Torches:  Up To 500 Amps
  • Plasma arc Welders/Cutters:  Up To 150 Amps
  • Resistance Welders:  Up To 60 KVA
    NOTE:
    ***The Bernard / ITW / Weldcraft V35 Water Cooler Has Been Discontinued By The Manufacturer.  Arc-Zone's recommended replacement is the Dynaflux DF-VH1000V-115 water cooler.
