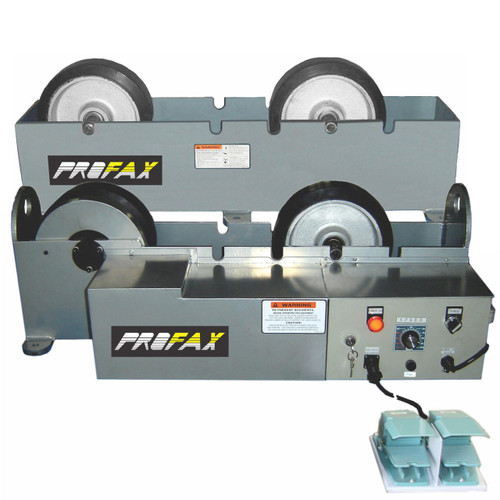

5,000 lb Capacity Turning Roll Set

Click to see larger version of 5,000 lb Capacity Turning Roll Set

Ref# AUT-TR-5000
MPN: TR-5000


$4,748.00

  Qty.
5,000 lb Capacity Turning Roll Set
Share: Share on Facebook Share on Google+ Share on Twitter Pin It to Pinterest

Product Description

Medium Duty Turning Roll Set

Designed for rotation of cylindrical work pieces, the TR-5000 turning is high frequency protected and includes forward/reverse foot control with 12' (3.6m) cord.  Kit comes standard with one idler roll.  Additional idler rolls are available.

Specifications:

Diameter Capacity 4" (101mm) - 48" (1,219mm)
Rotaion Speed 0 - 100 Inches Per Minute
Load Capacity 5,000 lbs. (2,268kg) [2,500 lbs. for each drive & idler]
Rotation Capacity 7,500 lbs. (3,402kg ) *with additional idlers
Wheels 3" (76mm) x 10" (254mm) Polyurethane
Input 115V
Shipping Weight 430 lbs. (195kg)
Warranty 1 Year


230V E.U. International model available. (AUT-TR-2000-2)

FREE SHIPPING WITHIN CONTINENTAL U.S.
