Gusset Plate Magnet

Click to see larger version of Gusset Plate Magnet

Ref# SHT-MGH20
UPC: 679352981888


Gusset Plate Magnet
Gusset Plate Magnet
Gusset Plate Magnet
Gusset Plate Magnet
Gusset Plate Magnet
Gusset Plate Magnet
Share: Share on Facebook Share on Google+ Share on Twitter Pin It to Pinterest

Product Description

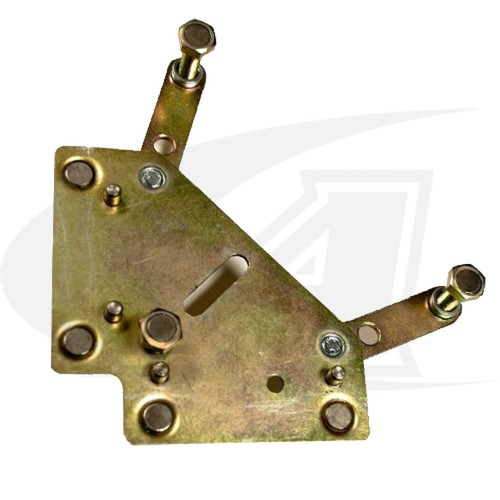

StrongHand™ Gusset Plate Magnet

Part # SHT-MGH20
Number of Magnets 7
Length 4-1/2" (114mm)
Width 4-1/2" (114mm)
Arm Length 2.2" (56mm)
Weight 0.6 lbs (0.3kg)

Uniquely developed by Customer Demand for quick parallel plane alignment, locating, and clamping of Gussets, Base Plates, and Panels, this low-profile Gusset Plate Magnet holds stock securely at 3 points directly on the surface area of Gussets, Base Plates, and Panels for locating and clamping, while leaving ample space for tack welding.

Four rare earth disc magnets set in the magnet face hold the Gusset Plate Magnet against your frame or substructure with direct, even clamping pressure for a fast, accurate and convenient setup. Three Adjustable 1-1/2" Magnetic Hex Bolts protrude from the magnet face and can be pre-set to the correct depth to securely position the gusset gusset in a precise location for tack welding.
