Home  /  Ground Clamps  /  C Style Welding Ground Clamps  /  MIG Welding C-Clamp Ground Clamp

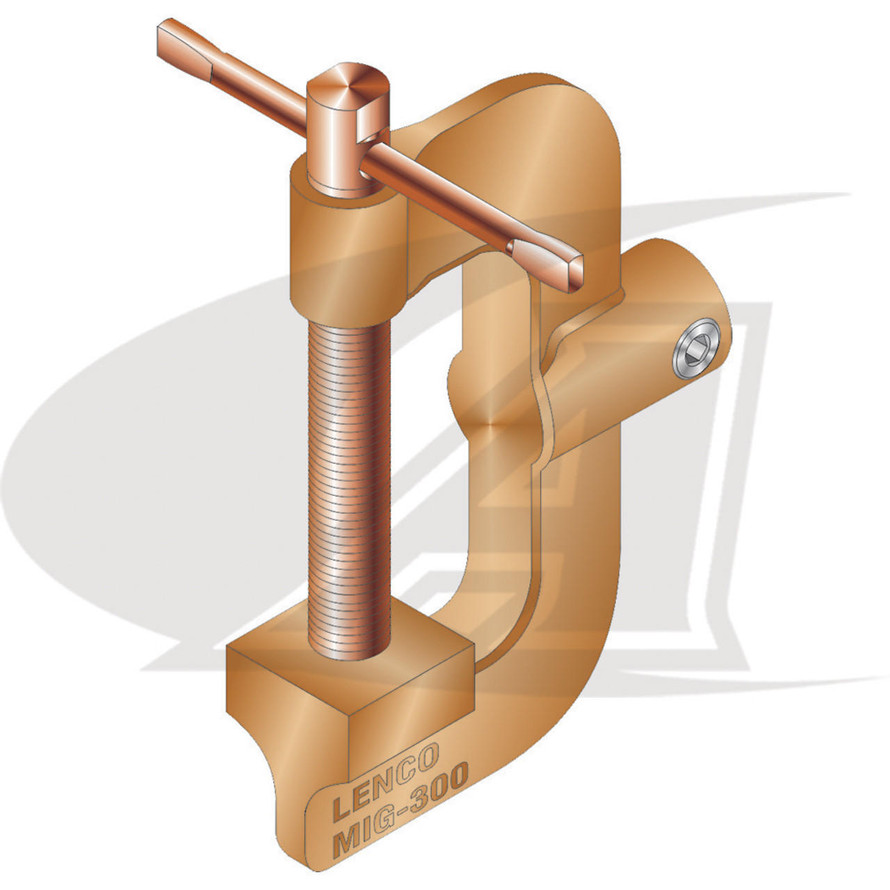

MIG Welding C-Clamp Ground Clamp

Click to see larger version of MIG Welding C-Clamp Ground Clamp

Starting at:  $31.18

  Qty.
MIG Welding C-Clamp Ground Clamp
MIG Welding C-Clamp Ground Clamp
MIG Welding C-Clamp Ground Clamp

Product Description

MIG-300 C-Clamps (Select Clamp Style From Drop Down Menu Above)

Part # Amperage Cable Capacity Connection Type Jaw Opening Throat Depth Weight
LEN-MIG-300 (02075) 300 Amp 1/0 - 2/0 (50mm2-70mm2) Oval-Point Screw 2" (51mm) 1-3/4" (44mm) 1.5 lbs (648g)
LEN-MIG-300-50 (02070) 300 Amp 1/0 - 2/0 (50mm2-70mm2) 1/2"-13 Screw 2" (51mm) 1-3/4" (44mm) 1.5 lbs (648g)

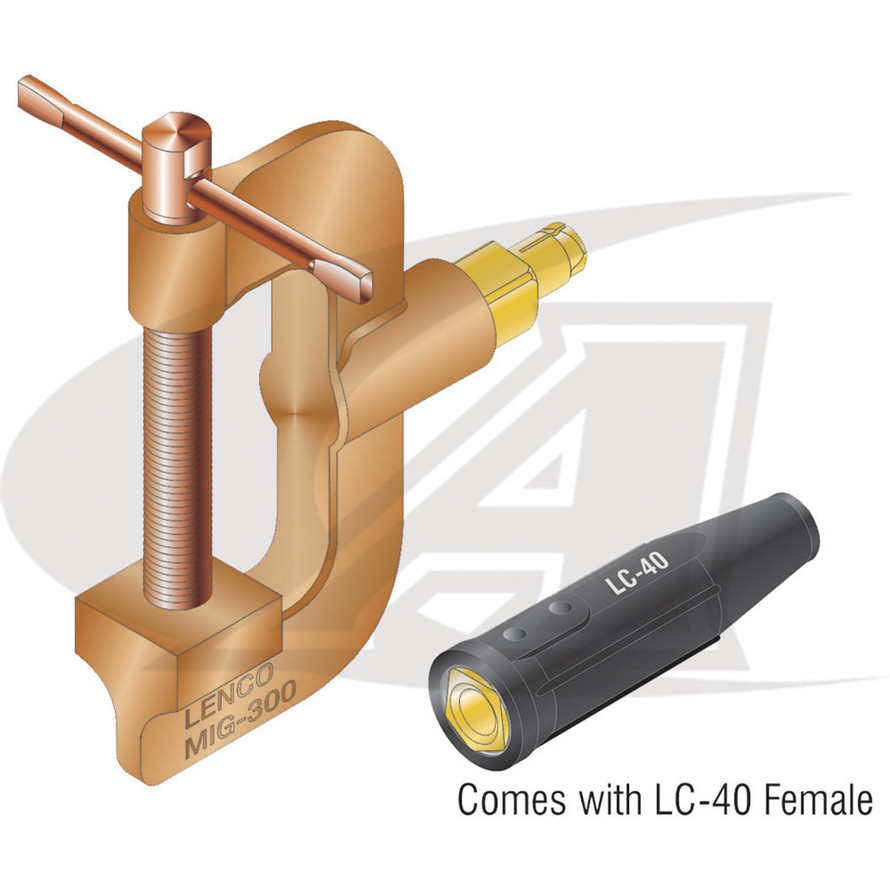

LEN-MIG-300-D (02082) 300 Amp 1/0 - 2/0 (50mm2-70mm2) Detachable Cable Connection 2" (51mm) 1-3/4" (44mm) 2 lbs (932g)

Specially designed to reduce voltage drop while MIG welding.  The powerful bite allows for low resistance ground connections.  They have a full 2" (51mm) opening and copper coated steel pressure screw with "T" handle, making it easy to apply maximum pressure.
