Large Gas Lens Collet Body For Series 3 (17/18/26) Style Torches

Large Gas Lens Collet Body For Series 3 (17/18/26) Style Torches

*Minimum Qty: 2 *Minimum Increments: 2
Share: Share on Facebook Share on Twitter Pin It to Pinterest

CK-3GL- -LD (select size from drop down menu)

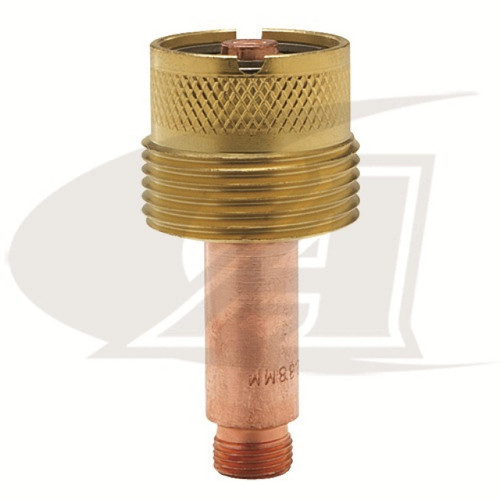

Large diameter gas lens style collet body by CK Worldwide® For series 3 TIG torches.  This style of collet body provides a laminar gas flow, providing better shield gas coverage while using less gas and allowing the electrode to be extended farther beyond the nozzle.

The large diameter gas lens nozzles need to be used with the long collets (CK-3C- - -L) and the large diameter teflon insulator (CK-3GHSLD).

Part Numbers:
CK-3GL116LD - 1/16" (1.6mm)   Interchangeable with 45V116
CK-3GL332LD - 3/32" (2.4mm)   Interchangeable with 45V64
CK-3GL418LD - 1/8" (3.2mm)   Interchangeable with 995795
CK-3GL532LD - 5/32" (4.0mm)  Interchangeable with 45V63

Designed to fit the following torches:

Genuine CK Worldwide® replacement parts are engineered to work with all popular TIG torches.

(Collet bodies priced individually, sold in packages of 2)

Report incorrect/unclear product info

Back To Top

Frequently Bought Together

Back to Top

Customers Also Purchased

Customer Reviews

  • 5 star 5
  • 4 star 0
  • 3 star 0
  • 2 star 0
  • 1 star 0

Average Customer Rating for:

Large Gas Lens Collet Body For Series 3 (17/18/26) Style Torches

5 of 5 Stars! (5)

5 out of 5 stars

Added:  by

5 of 5 Stars!
This should include sizes. 1"16 thread by 2.0 long by 3/8-32 for #17-18 torch
Then part numbers.

Added:  by

5 of 5 Stars!
I've seen a lot of pipe guys using these LD set ups on their rigs, and wanted to see what all the hype was about. I used this with a 3/32" tungsten and a #6 cup on some 1/4" mild steel projects and was very impressed. The quality of the appearance of the weld was much much more aesthetically pleasing. I got a lot of gold colors with this set up, as opposed to the standard shiny bead when using a standard gas lens with a #6 cup. I also found that the puddle seemed to wet out a little bit better, which was definitely an added bonus. With that being said, I try to use the large diameter set up as much as possible, as long as there are no space constrictions.
