Description

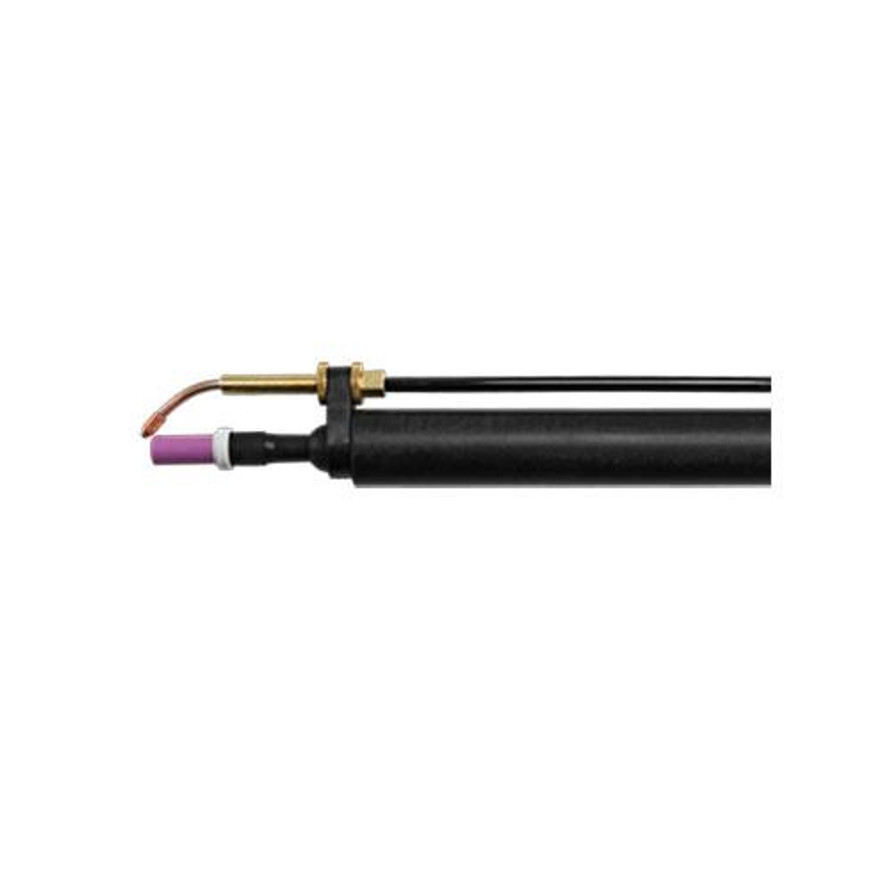

Torch Mounted Automatic Wire Feeder
These machine-mounted TIG torches with integrated wire feeder are used in conjunction with the WF-5 Cold Wire Feeder from CK Worldwide. Please select the Torch Style, wire size and wire type from the drop down menus above.
All selections are for water-cooled TIG torches with 12.5' (3.8m) TriFlex, high purity cables. Cable cover sold separately. All of the torch package selections have standard threaded power, gas, and water fittings/ Depending on which power source the TIG torch will be connected to, additional connector or adapter fittings may be required.
*Hard Wire refers to steel & Soft Wire refers to Aluminum
Torch Specifications:
| Torch Model | CK-230 Pencil Compact 2-Series Torch | |||
|---|---|---|---|---|
| Amperage | 300 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 180º Head, Front Loading | .030" Hard | CK-CWM2312-030H | |
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | .030" Soft | CK-CWM2312-030S | |
| Head size | 2 Series | .035" Hard | CK-CWM2312-035H | |
| Torch body weight | 6 oz. (170g) | .035" Soft | CK-CWM2312-035S | |
| Torch length | 18" (457mm) | .045" Hard | CK-CWM2312-045H | |
| Barrel O.D. | 1-3/8" (35mm) | .045" Soft | CK-CWM2312-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWM2312-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWM2312-116S | |
| Torch Model | CK-350 Pencil 3-Series Torch | |||
|---|---|---|---|---|
| Amperage | 350 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 180º Head, Front Loading | .030" Hard | CK-CWM312-030H | |
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | .030" Soft | CK-CWM312-030S | |
| Head size | 3 Series | .035" Hard | CK-CWM312-035H | |
| Torch body weight | 6-1/4 oz. (177g) | .035" Soft | CK-CWM312-035S | |
| Torch length | 18" (457mm) | .045" Hard | CK-CWM312-045H | |
| Barrel O.D. | 1-3/8" (35mm) | .045" Soft | CK-CWM312-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWM312-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWM312-116S | |
| Torch Model | CK-400 Compact 3-Series Machine Torch | |||
|---|---|---|---|---|
| Amperage | 400 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 180º Head, Front or Back Loading | .030" Hard | CK-CWMT412-030H | |
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | .030" Soft | CK-CWMT412-030S | |
| Head size | 3 Series | .035" Hard | CK-CWMT412-035H | |
| Torch body weight | 6-1/4 oz. (177g) | .035" Soft | CK-CWMT412-035S | |
| Torch length | 4-1/16" (103mm) | .045" Hard | CK-CWMT412-045H | |
| Barrel O.D. | 0.83" (21.09mm) | .045" Soft | CK-CWMT412-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWMT412-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWMT412-116S | |
| Torch Model | CK-500 Barrel Machine Torch | |||
|---|---|---|---|---|
| Amperage | 500 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 180º Head, Front or Back Loading | .030" Hard | CK-CWMT512-030H | |
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | .030" Soft | CK-CWMT512-030S | |
| Head size | 3 Series | .035" Hard | CK-CWMT512-035H | |
| Torch body weight | 12 oz. (340g) | .035" Soft | CK-CWMT512-035S | |
| Torch length | 7" (17.8mm) | .045" Hard | CK-CWMT512-045H | |
| Barrel O.D. | 1.375" (34.93mm) | .045" Soft | CK-CWMT512-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWMT512-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWMT512-116S | |
