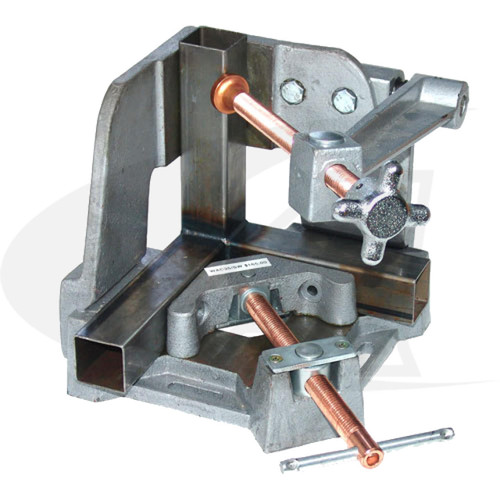

3-Axis Welders Angle Clamp

Click to see larger version of 3-Axis Welders Angle Clamp

Starting at:  $222.00

  Qty.
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp
3-Axis Welders Angle Clamp

Product Description

StrongHand™ 3-Axis Welders Angle Clamp (Select Size From Drop Down Menu Above)

Part # SHT-WAC35-SW SHT-WAC45-SW
Jaw Length 4.80" (122mm) 5.32" (135mm)
T-Clearance 2.45" (62mm) 3.92" (100mm)
Jaw Height 1.38" (35mm) 2.25" (57mm)
Miter Joints 3.75" (95mm) 4.75" (120mm)
Slot Size 1.18" (30mm) 2" (50.9mm)
Slot Width 0.43" (11mm) 0.43" (11mm)
Weight 24 lbs (11.0kg) 43 lbs (20.0kg)

Holds a 3-axis workpiece in position before welding.

  • Features the Quick Acting Screws and "Swing Away" Arm.

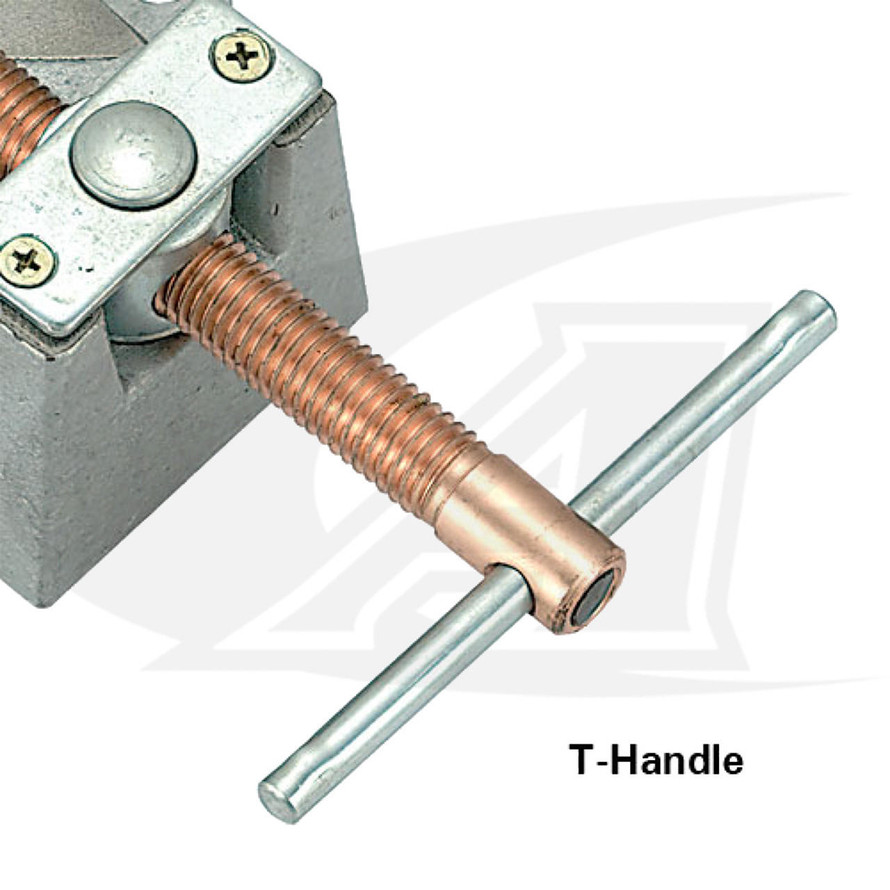

  • With the push of the buttons, the threaded screws easily slide in and out.
  • When the job is finished, simply "swing away" the 3rd Axis arm for quick and easy part removal.
  • Hold parts in position during cool down to minimize distortion due to contraction.
  • Available in 3.75" (95 mm) and 4.75" (120 mm) capacities. Model WAC45-SW comes with a curved arm for greater workpiece clearance.



Customer Reviews

  • 5 star 1
  • 4 star 0
  • 3 star 0
  • 2 star 0
  • 1 star 0

Average Customer Rating for:

3-Axis Welders Angle Clamp

5 of 5 Stars! (1)

5 out of 5 stars


Added:  by

5 of 5 Stars!
Even though it's the smaller model, this thing is big. Easily used as a two axis clamp - there is enough clearance above the "flat" part to weld a 45 degree joint without a vertical member without wishing you had another clamp or a smaller torch. The footprint is small enough to mount on a strong medium size angle plate.
The z-axis clamp has a quick-action button as well as the x-y clamp. It's easy to miss that in the picture. The swing-away feature of the z-axis clamp has a good sized spring to make lifting it easy, which is nice when you're wearing big gloves. It comes with an inspection and measurement report like a machine tool accessory.
The pictures on the site fail to convey the quality of the overall hammertone finish (save the machined flats).
