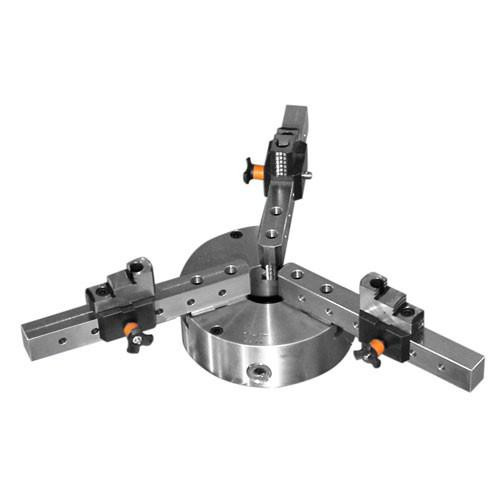

PG-500 Welding Chuck for PT-100/200/450M Welding Positioner

Click to see larger version of PG-500 Welding Chuck for PT-100/200/450M Welding Positioner

[Part# AUT-PG-500] [Vendor's Part# PG-500]

$1,197.00

  Qty.
PG-500 Welding Chuck for PT-100/200/450M Welding Positioner

Product Description

PG-500

Positioner Chuck, designed for PT-100/200 welding positioners. Self centering design allows for easy mounting of work piece.  Reversible jaws and external/internal gripping locks work piece in place for rotation.

Specifications:
Specifications:
Outside Clamp Diameter: 3/16" to 19-5/8"
Inside Clamp Diameter: 2-1/4" to 21-1/4"
Mounting Holes B.C.D:  5.8”
Screw Size: 3-M10
Chuck Jaws: (3) Self-Centering
Chuck Adjustment: Single Point Screw
Jaws Attachment: Reversible, Quickset Ball Lock Pin
Recommended Positioner: PT-100/200/450

Net Weight: 30 lb.
