Table Legs for S28- Professional Extreme 750 (Select Style From Drop Down Menu Above)

Siegmund™ Welding Tables come with a wide range of mounting options to suit every workspace. Legs are ordered

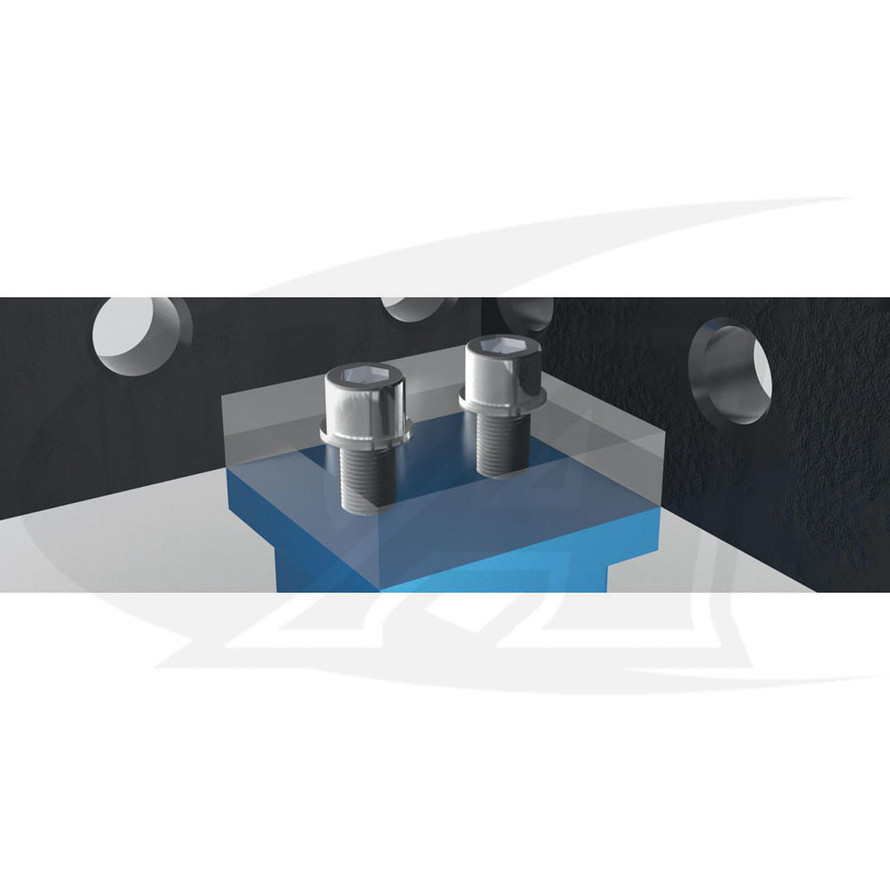

individually and the quantity required will vary depending on table size.  Legs mount onto plates at the bottom of the table; to calculate height of work surface add the height of the leg and the height of the table together. For example, the 750 mm Standard Leg combined with a table height of 200 mm results in a 950 mm high work surface. Leveling feet with spindles at the bottom of the legs offer fine adjustment.

The maximum bearing load per leg in system 28 is max. 800 - 2,000 kg for all tables depending on
the leg type.  The indicated bearing loads are calculated with reserves for safety reasons.  Please consult with manufacturer if higher overall loads are required.

Part Number Leg Type Height Spindle Adj.
Range
Static Load
Capacity
Per Leg
Weight
SHT-S2-280858-X Standard
Leg
650mm
(25.6")
50mm (1.9") 2,000kg
(4,400 lbs)
8.5kg
(18.7 lbs)
SHT-S2-280857-X Standard
Leg
750mm
(29.5")
50mm (1.9") 2,000kg
(4,400 lbs)
9.0kg
(19.8 lbs)
SHT-S2-280878-X Adjustable
Leg
450-700mm
(17.7"-27.6")
50mm (1.9") 2,000kg
(4,400 lbs)
9.2kg
(20.3 lbs)

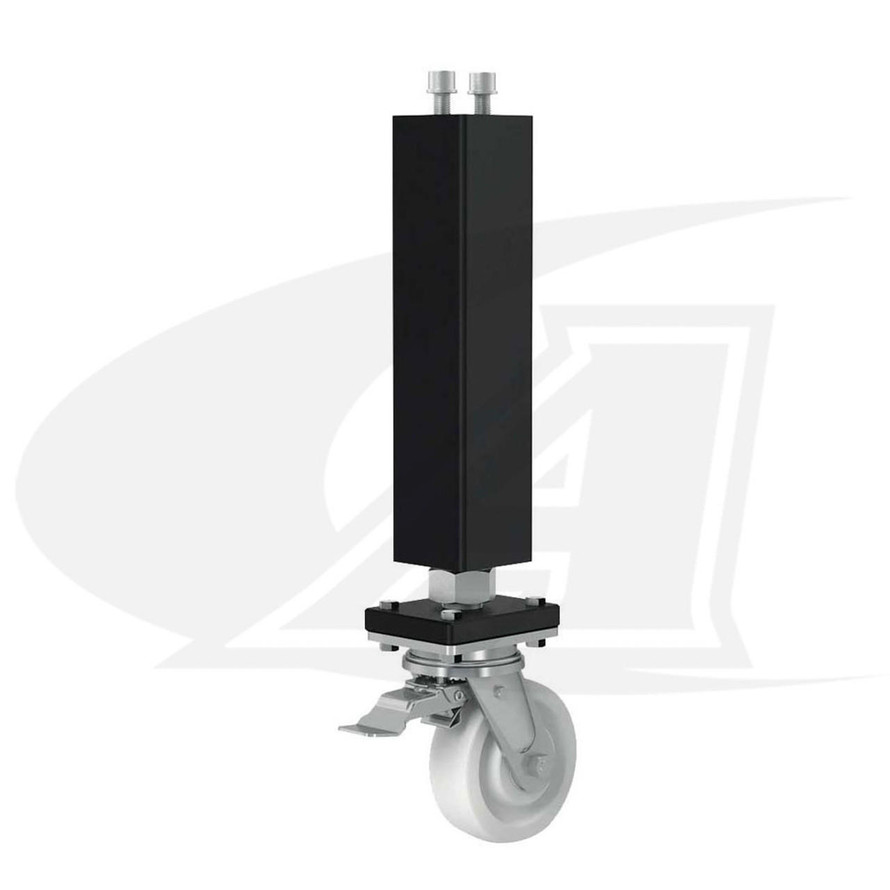

SHT-S2-280876-X Leg W/ Caster 650mm
(25.6")
20mm (0.8") 800kg
(1,760 lbs)
9.0kg
(19.8 lbs)
SHT-S2-280879-X Adjustable Leg
W/ Caster
550-750mm
(21.6"-29.5")
20mm (0.8") 800kg
(1,760 lbs)
11.0kg
(24.3 lbs)
SHT-S2-280874-X Floor Anchoring
Leg
650mm
(25.6")
50mm (1.9") 2,000kg
(4,400 lbs)
8.5kg
(18.7 lbs)
SHT-S2-280875-X Floor Anchoring
Leg
750mm
(29.5")
50mm (1.9") 2,000kg
(4,400 lbs)
9.0kg
(19.8 lbs)

Only transport tables on castors when table is not in use. Proceed slowly and use extra caution around uneven surfaces. Hitting cracks while rolling may create unsafe shearing forces on the legs.  Rolling across uneven surfaces may cause one or more legs to be abruptly raised and lowered back onto the ground, creating a pinch hazard.

Siegmund Tables Ship By Truck.  For custom freight quotes, please contact a customer care representative
