Trick Tools

Small Diameter Hand Tubing Bender

(No reviews yet) Write a Review
MPN:
HB1
Minimum Purchase:
1 unit

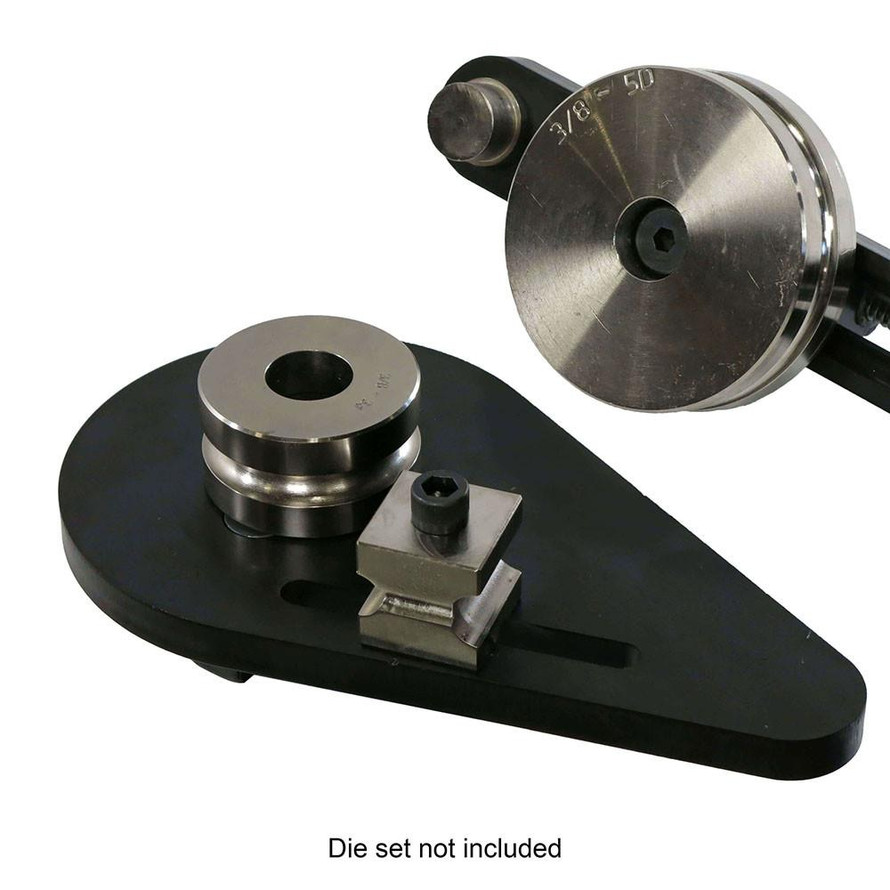

  • Trick Tools Small Diameter Hand Tubing Bender
  • Trick Tools Small Diameter Hand Tubing Bender
  • Trick Tools Small Diameter Hand Tubing Bender
$410.00 - $1,150.00

Description

Versatile Tube Bending Tool

The HB1 Hand Tube Bending Machine handles up to 5/8 inch OD tubing. Heavy duty steel construction ensures lasting quality for bending custom fuel, brake, and hydraulic lines, even small diameter chassis tubing. Quick setup and simple operation make this the right choice for light production, repair, and prototype work. The HB1 Tubing Bender produces quality bends in a variety of materials and wall thicknesses with the flexibility required for any project.

The unique design of this bender allows for right or left handed bending and close bend to bend distances. It can be clamped in a vise or bolted to the optional stand and anchored to the floor. Each die set is reversible so you have two radius options for each size and the adjustable bend die allows for easy repositioning and removal of the tube.

Order the Tube Bender with no accessories, or use the drop down menu above to add the Optional Die Kit the Deluxe Model with the Foor Pedestal with Die Rack, which also includes the Optional Die Kit.

Part Number TLS-HB1 TLS-HB1-K TLS-HB1-DX
Mild Steel Capacity 5/8" x .065" (15.9 x 1.6mm)
Round Aluminum Capacity 5/8" x .065" (15.9 x 1.6mm)
Solid Bar Mild Steal Capacity 5/16" (7.9mm)
Minimum OD 3/16" (4.8mm)
Bending Style Rotary Compression
Min. Center Line Radius 0.62" (15.7mm)
Max. Center Line Radius 3.15" (80.0mm)
Max Degree of Bend 180º
Maximum OD 5/8" (15.9mm)
Included Items:  Tube Bender X X X
Vise Mounting Block X X
Floor Pedestal     X
Die Rack     X
3/16" (4.8mm) 4D & 5D Radius Dies   X X
1/4" (6.3mm) 3D & 5D Radius Dies   X X
5/16" (7.9mm) 3D & 5D Radius Dies   X X
3/8" (9.5mm) 3D & 5D Radius Dies   X X
1/2" (12.7mm) 3D & 5D Radius Dies   X X
5/8" (15.9mm) 3D & 5D Radius Dies   X X

1 Year Manufacturer's Warranty
