V-Block Fixtures (Select Style From Drop Down Menu Above)

V-Prisms are used for holding round stock of different sizes.  Included in the delivery of V-prisms are a screw-in collar (SHT-S2-280669) and countersunk bolt.  This enables the V-prism to be used flat on the table or with system holes.  The clamping cone is clamped to 28 mm bore holes using fast clamping bolts.

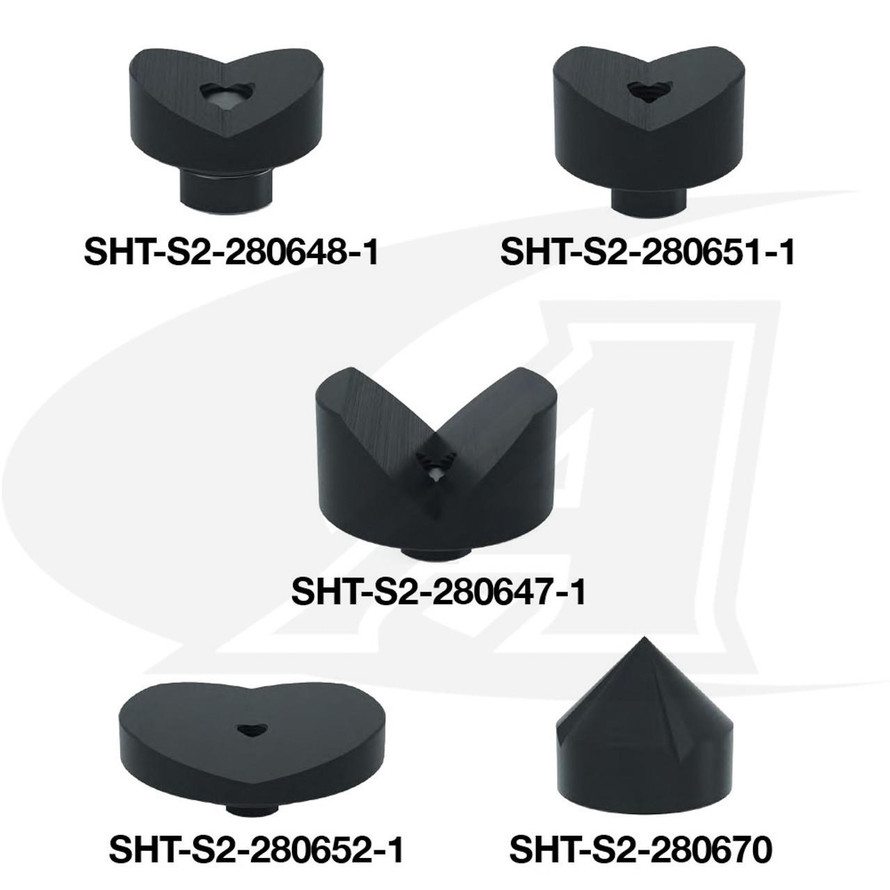

Part Number Name Hole Mount Height Diameter V Angle Weight
SHT-S2-280648-1 50mm Prism w/ Thread-In Collar M16 Threads 20mm
(0.8")
50mm
(2.0")
135º 0.2kg
(0.4lbs)

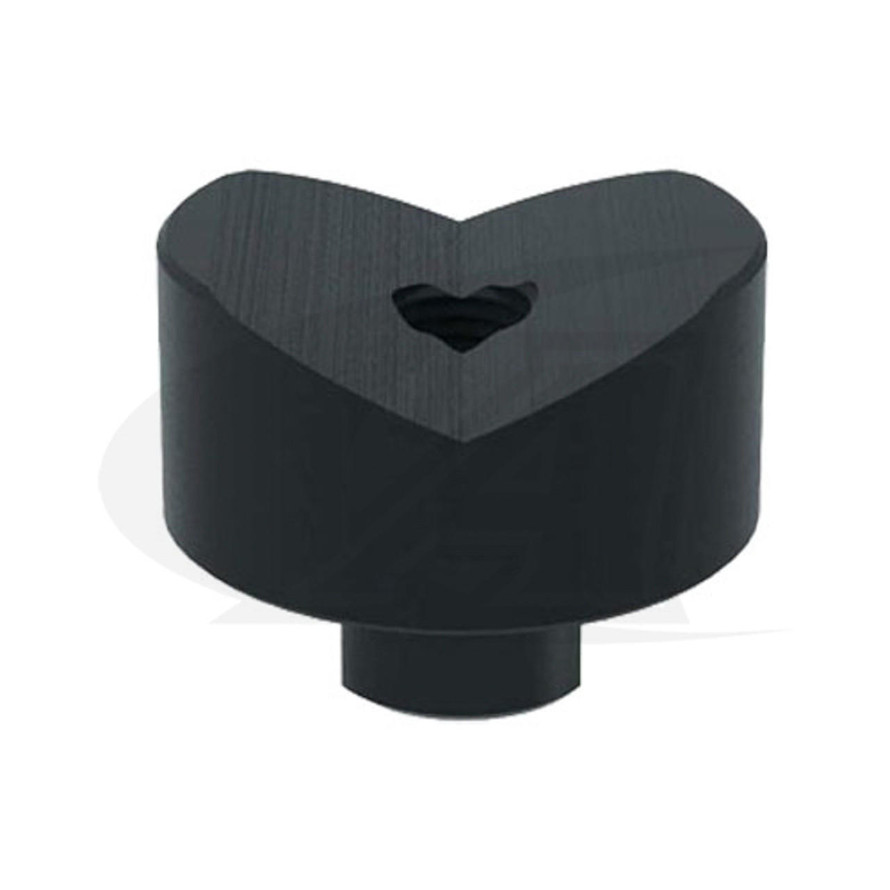

SHT-S2-280651-1 60mm Prism w/ Thread-In Collar M16 Threads 30mm
(1.2")
60mm
(2.4")
135º 0.5kg
(1.1lbs)
SHT-S2-280647-1 80mm Prism w/ Thread-In Collar M16 Threads 40mm
(1.6")
80mm
(3.1")
90º 1.0kg
(2.2lbs)
SHT-S2-280652-1 120mm Prism w/ Thread-In Collar M16 Threads 30mm
(1.2")
120mm
(4.7")
157º 1.7kg
(3.7lbs)

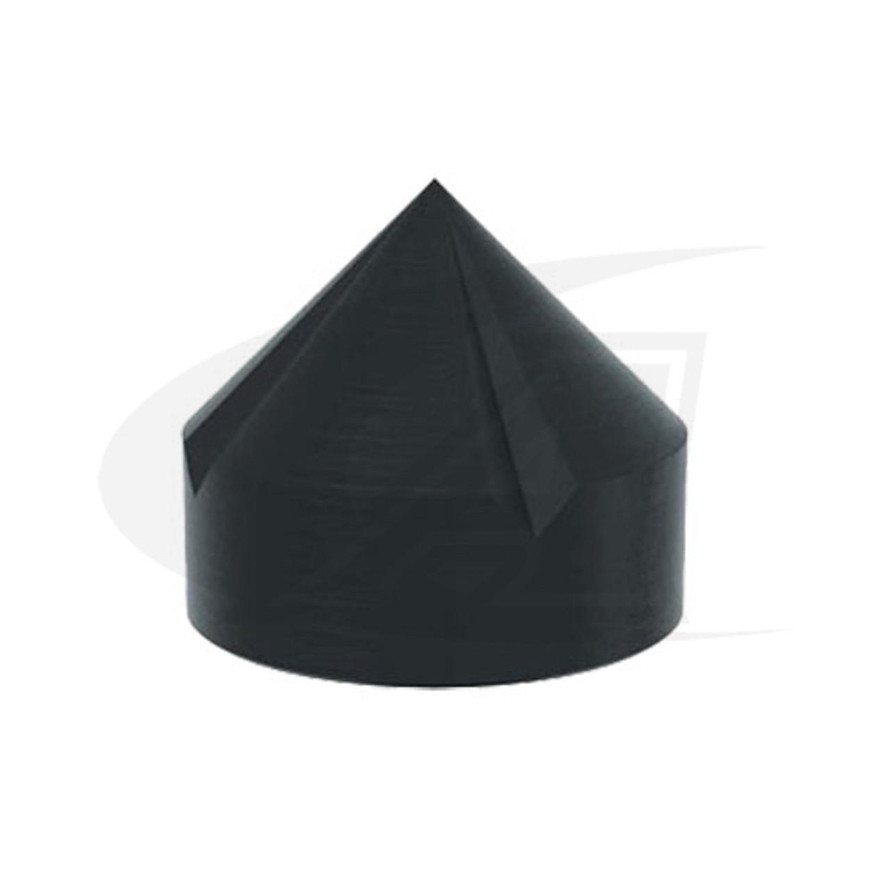

SHT-S2-280670 Clamping Cone 28mm Post 70mm
(2.8")
80mm
(3.1")
-- 1.4kg
(3.1lbs)
