Prisms (Select Style From Drop Down Menu Above)

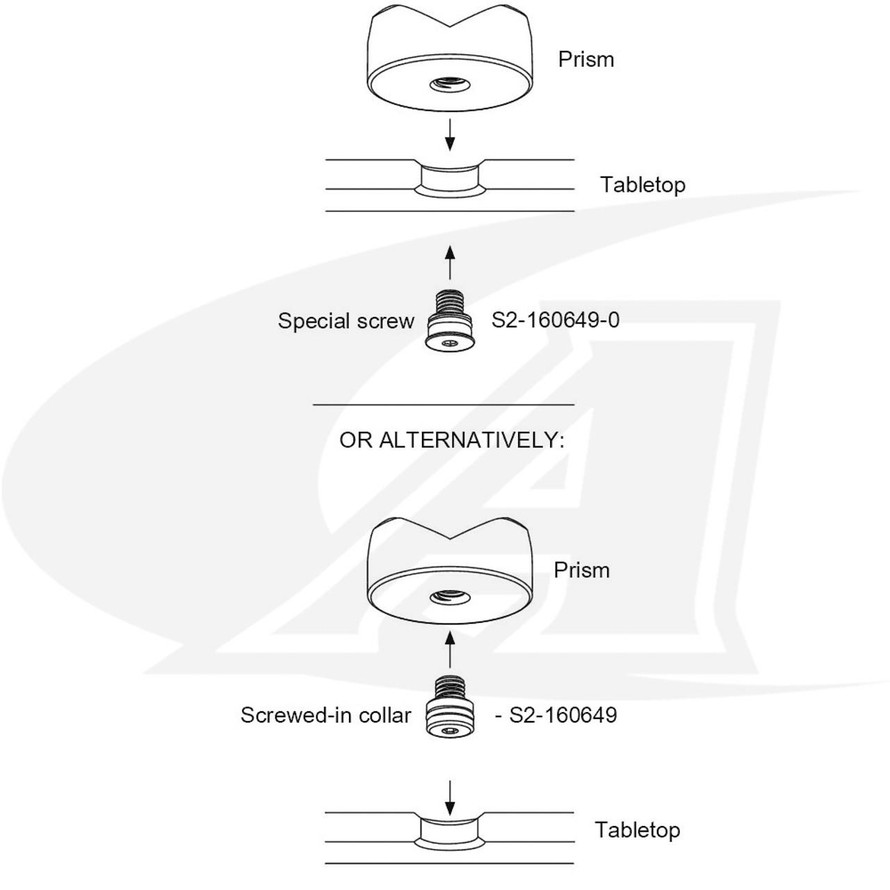

All System 16 Prisms (V-Blocks) are equipped with a removable screwed-in and a countersunk bolt.  With the threaded collar installed, the prisms can be installed in any System 16 borehole for a sturdy, locked-in support surface for pipe and other round stock.  Prisms can also be used without the threaded collar installed, allowing for placement anywhere, regardless of boreholes.

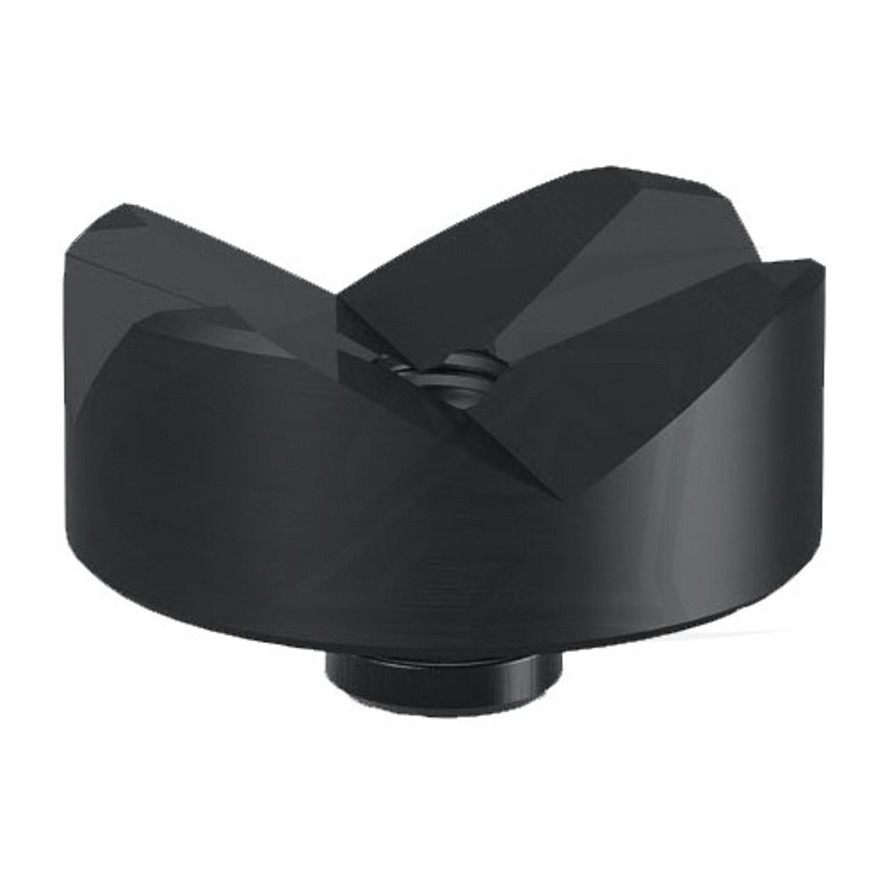

The Vario Prism is suitable for both rounded and 45 degree twisted square pipes up to 80 mm in diameter because of it’s 90 and 120 degree angles.

The 80mm Prism has a 120° andgle, and is suitable for pipes diameters up to 120 mm.

The Clamping cone enables clamping of round and square pipes with a diameter of up to 45 mm.  Cone enables locating through the centerline of tubes.  Clamping cone is fastened using bolts such as SHT-S2-280510 and contains no collar.

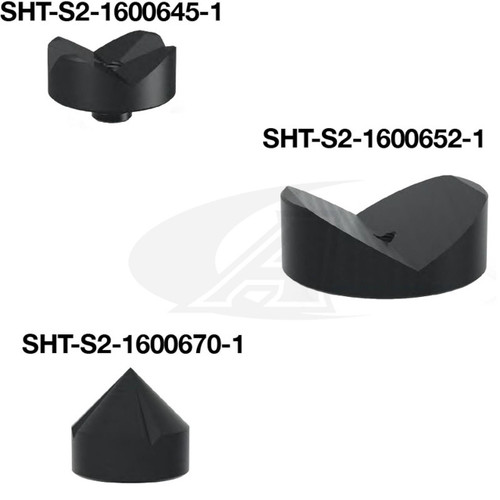

Part Number Name Height Diameter Weight
SHT-S2-160645-1 Vario Prism 20mm
(0.8")
50mm
(2.0")
0.2kg
(0.4lbs)
SHT-S2-160652-1 80mm Prism 30mm
(1.2")
80mm
(3.1")
0.8kg
(1.8lbs)
SHT-S2-160670 Clamping Cone 40mm
(1.6")
45mm
(1.8")
0.3kg
(0.7lbs)
