Siegmund

Siegmund™ Table-Mount Clamps for System 16 Tables

(No reviews yet) Write a Review
MPN:
S2-160610
Minimum Purchase:
1 unit
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
  •  Siegmund™ Table-Mount Clamps for System 16 Tables
$90.00

Description

Welding Table Clamps (Select Style From Drop Down Menu Above)

Siegmund™ Versatile clamping systems ensure a clamp for your every need.  All clamps easily set with one hand and feature interchangeable pads for work with sensitive materials.

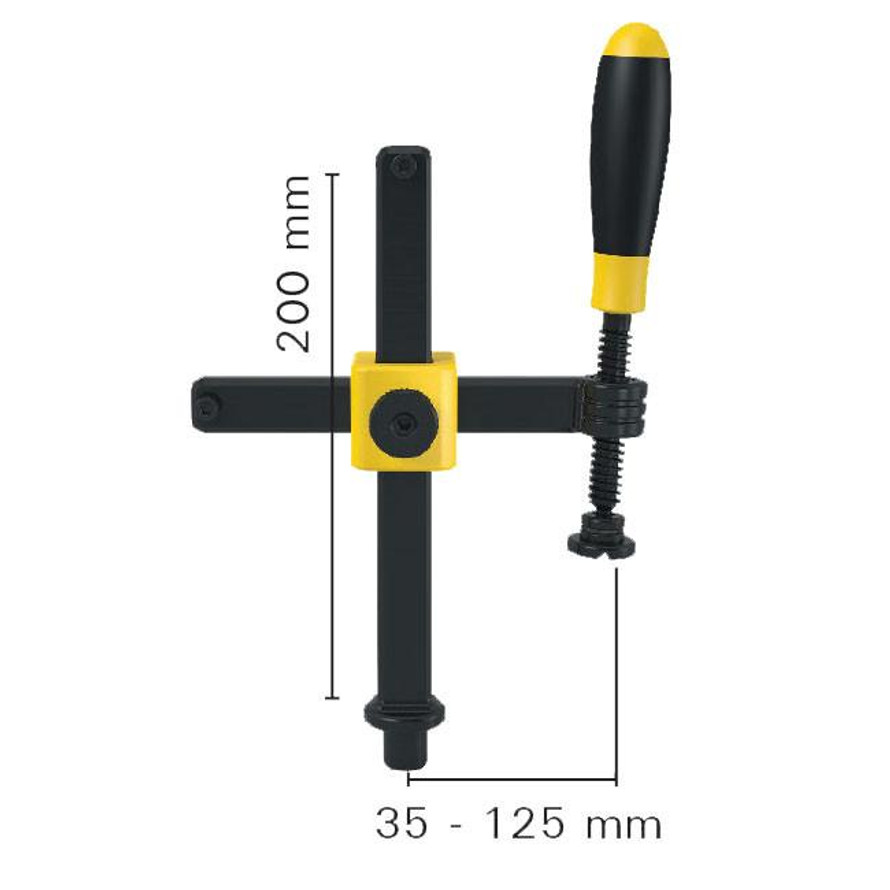

The Standard Screw Clamp adjusts by hand along the vertical and horizontal axis for precise placement anywhere on the table.

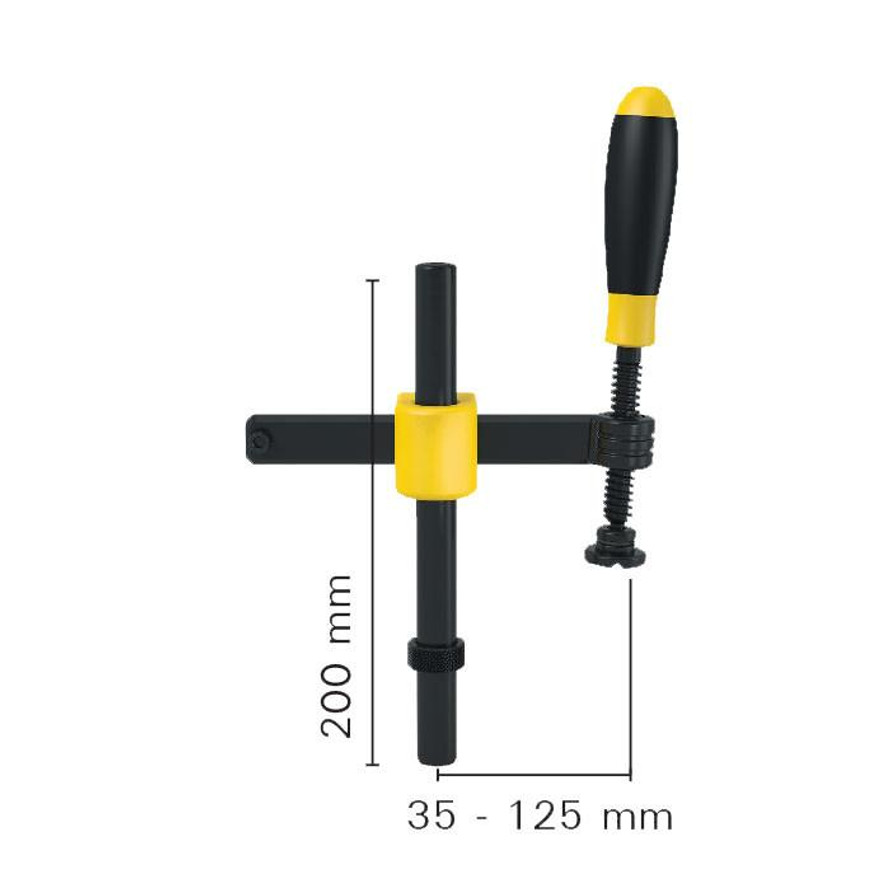

The Universal Pipe Clamp features horizontal and vertical adjustment as well as pivoting action at the spindle head.  An adjustment ring at the base allows it to sit in a lower profile during welding as the round bar sits below the table or clamping square surface.

Spindle and bushings from item SHT-S2-160610 can be removed by hand and inserted into system holes for clamping with stops and squares.

Part Number Name Maximum Load
(kN)
Weight
SHT-S2-160610 Standard Screw Clamp 2.5 1.2kg
(2.6lbs)
SHT-S2-160630 45/90 Screw Clamp 2.5 0.8kg
(1.7lbs)
SHT-S2-160601 90 Degree Pipe Clamp 1.5 1.0kg
(2.2lbs)
SHT-S2-160604 Universal Pipe Clamp 1.5 0.8kg
(1.8lbs)



View AllClose

Additional Information

Accessory Type:
Clamps
Table Brand:
Siegmund
Table Hole Dia.:
16 mm
