Home  /  Tools, Tables & Accessories  /  Grinding & Polishing  /  Multitool Combination Grinder W/ 2" x 36" Belt Assembly

Multitool Combination Grinder W/ 2" x 36" Belt Assembly

Click to see larger version of Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly

Starting at:  $449.95

  Qty.
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Multitool Combination Grinder W/ 2\" x 36\" Belt Assembly
Share: Share on Facebook Share on Google+ Share on Twitter Pin It to Pinterest

Product Description

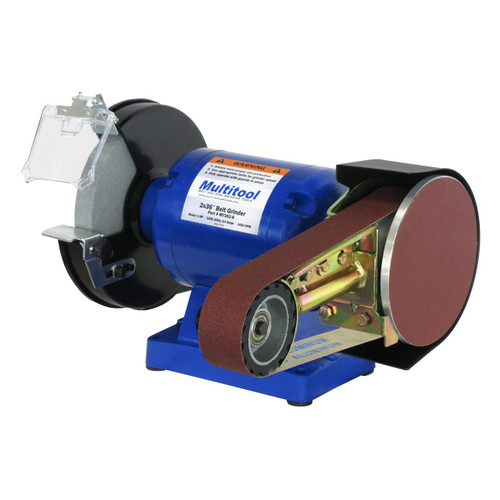

Combination Bench Grinder, Belt Sander, Disc Sander
(Use Drop Down Menu Above to Add the High Performance Grinding Pedestal)

The popular Multitool 2x36 belt grinding attachment is now available mated to a 1 hp grinder. More than a traditional belt sander, this versatile tool has a belt speed of approximately 5,400 surface feet per minute which allows for material removal up to 5 times faster than with the equivalent grit grinding wheel.

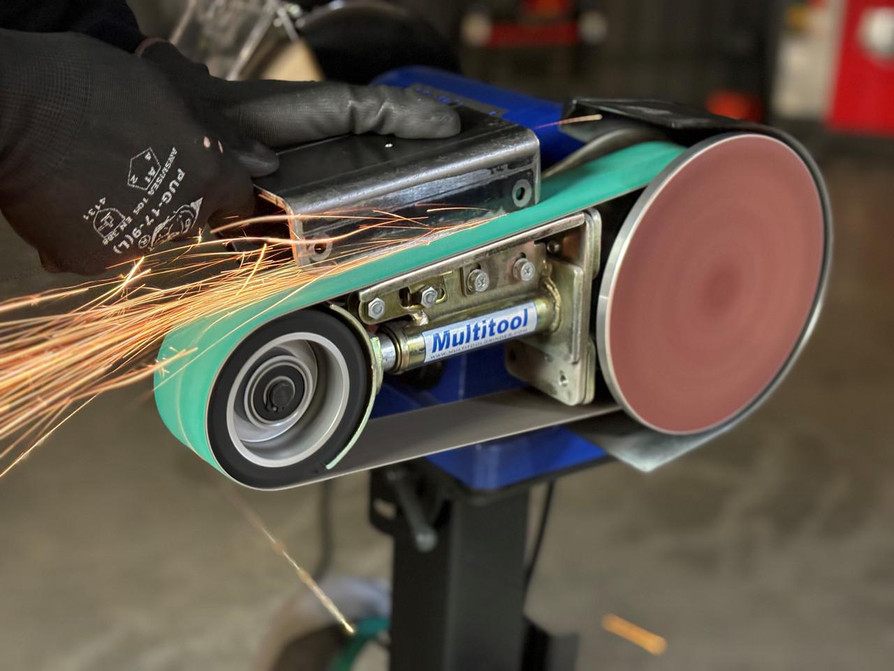

Additionally, with the Multitool you have 5 grinding areas in one machine. The majority of work is generally performed on the contact wheel, but the unit also offers platen grinding, slack-belt grinding, disc grinding, and stone wheel grinding!

Belts change in seconds from grinding, to sand, deburr, or polish. A variety of belts and discs are available for any project.

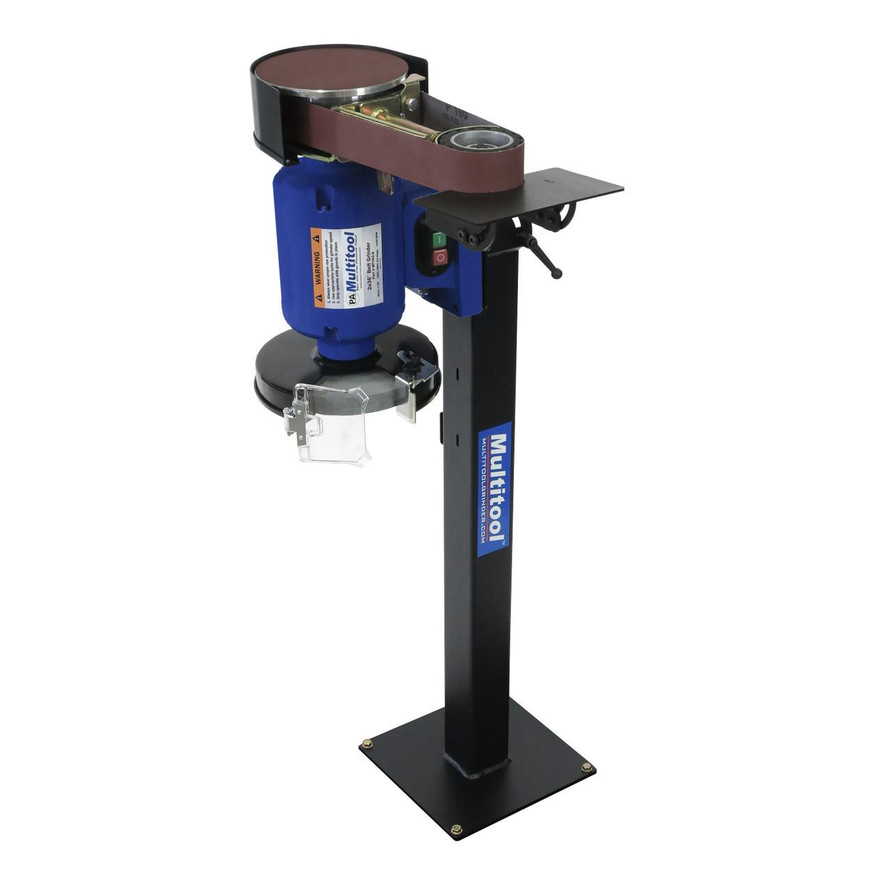

This Standard Multitool bundle includes 8", 36 grit grinding stone, as well as 1 each of: 40, 80, 120, & 180 grit premium aluminum zirconia belts.  Use the drop down menu above to upgrade the package to include the high perforance grinding pedestal with pivoting material head and a tilting base that allows the grinder to quickly rotate from vertical to horizontal orientation.

Specifications:

  Grinder Only Grinder With Pedestal
Part Number TLS-MT362-8 TLSMT362-8-DLX
Motor 1hp, 110 volt
Belt Width 2" (50.8mm)
Belt Length 36" (914.4mm)
Belt Speed 5,400 feet (137m) per min
Contact Wheel Diameter 3.5" (88.9mm)
Platen Size 2" (50.8mm) x 5.875" (149.2mm)
Disc Size 7" (177.8mm)
Rotation Speed 3,450 RPM
Grinder Length 17" (432mm)
Grinder Width 16" (406mm)
Grinder Height 11" (280mm) 47" (1.2m)
Weight 45 lbs (20.4kg) 93 lbs (42.2kg)
Table Tilt N/A 50° out, 5° in

Warranty:  1 year manufacturer's warranty

Back To Top

Customers Also Purchased

Customer Reviews

  • 5 star 1
  • 4 star 1
  • 3 star 0
  • 2 star 0
  • 1 star 0

Average Customer Rating for:

Multitool Combination Grinder W/ 2" x 36" Belt Assembly

4.5 of 5 Stars! (2)

4.5 out of 5 stars


Added:  by

4 of 5 Stars!
It’s been a great tool so far. Setting it up took a bit more time then I would have liked, but once I got the belt adapter dialed in it runs true. The one problem is the motor casting had a weak spot in the cast. When I tightened it to the pedestal a chunk broke out. It didn’t affect the mounting though, so I’ll live with it. The belt is pretty bad ass. I’ve really layed into it, and it doesn’t care. Overall great tool to have for a small business like mine.

Added:  by

5 of 5 Stars!
