Large Universal Welding Cart W/ Folding Handle

Click to see larger version of Large Universal Welding Cart W/ Folding Handle



Large Universal Welding Cart W/ Folding Handle
Large Universal Welding Cart W/ Folding Handle
Share: Share on Facebook Share on Google+ Share on Twitter Pin It to Pinterest

Product Description

Universal Welding Cart

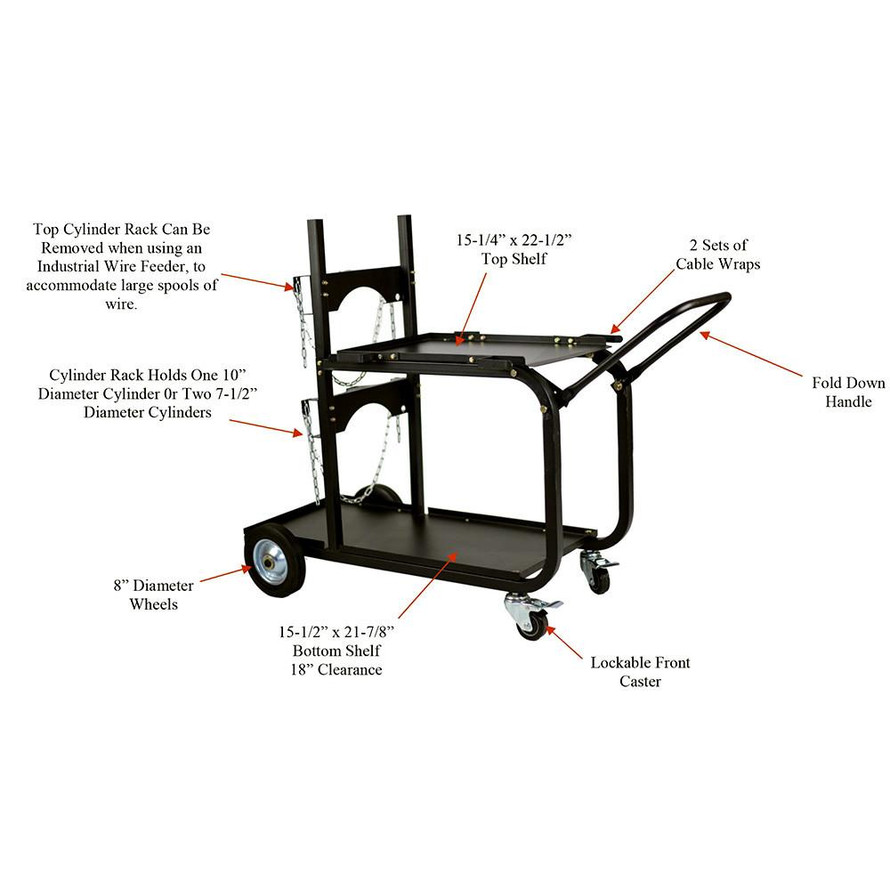

The Metal Man Heavy-Duty Single/Dual Bottle Welding Cart (UWC4) is designed for multiple uses. It can be used to hold portable wire welders, plasma cutters and TIG welders along with the bottle of shielding gas needed for that application. Its unique cylinder rack allows you to configure it to carry one bottle of gas up to 10 inches in diameter and up to 300 cu. Ft.; or two separate bottles of gas up to 7-1/2 inches in diameter or 150 cu. Ft each. Or use this welding cart to hold two separate welders or a welder and a plasma cutter. The third use for this Cart is as a power source and feeder cart. The bottom shelf has an 18 inch clearance, giving ample space to store a smaller, inverter based welding power source on the bottom shelf. The top shelf has ample space to fit a wire feeder. In addition, the top of the cylinder securement rack can be removed to accommodate the wire feeder spool holder and a large spool of wire.

Note:  The UWC3, Medium cart, is no longer available from the manufacturer.


  • Holds 10" (254.0mm) Diameter Cylinder or Two 7-1/2" (190.5mm) Diameter Cylinders
  • Slanted Shelf for Easy Access To Welder Controls
  • Fold Down Handle
  • Wrap Around Cable Holders
  • 400lbs (181.44kg) capacity
  • 8" (203.2mm) Rear Wheels
  • 2 Locking Front Casters
  • Removable Top Cylinder Rack for Industrial Wire Feeder Applications
  • Shipping Weight = 50 lbs (22.7kg)
  • 18 Gauge Steel Construction with Powder Coat Finish
