CK Worldwide

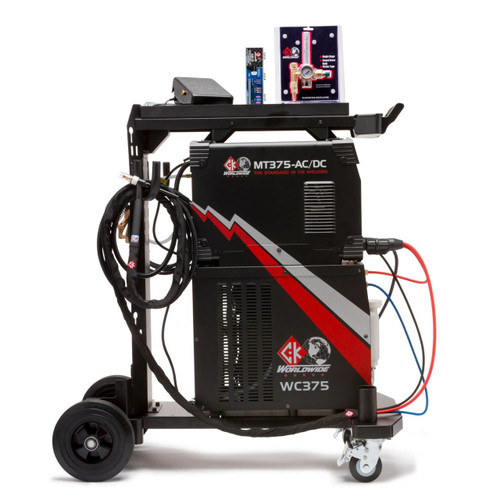

NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System

(No reviews yet) Write a Review
Minimum Purchase:
1 unit
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
  • CK Worldwide NEW CK MasterTIG 375 Amp AC/DC Water-Cooled TIG Welding System
$9,699.00 - $9,812.75

Description

CK Worldwide® MasterTIG MT375 Amp AC/DC Water Cooled TIG Welding System!

New CK MasterTIG MT375 AC/DC dual voltage Water-Cooled TIG Welding machine engineered to deliver the highest quality welding productivity. Built to be durable and loaded with advanced capabilities to weld a variety of materials including exotic alloys.

CK MT375 amp AC/DC dual voltage workhorse is equipped with a heavy-duty dual pump water cooler, robust cart, and compact and powerful Trim Line TIG torch with Super-Flex™ cables, and Steady-Grip™ Foot Pedal.  Everything you need to Weld-Like-A-Pro.

  • High-performance dual voltage inverter for 230V & 460V
  • Two dynamic welding modes: GTAW (TIG) and SMAW (Stick)
  • Easy-to-use interface allows quick setting adjustments
  • Fully equipped with a dual pump water cooler & utility cart
  • NEW Patented Steady-Grip™ foot pedal quickly converts to fingertip amperage control
  • ***Basic front end parts starter kit***

*** Upgrade to a Arc-Zone StubbyCup Pro Gas Lens Kit *** Save $45.00!

StubbyCup Gas Lens Pro Kits shrink your TIG torches front-end part size for better puddle control and access to tight spaces. -- (Select from Drop Down Menu Above) --

CK Worldwide® More Than 35 Years of TIG Welding Innovation

Don't waste your valuable time & money dealing with hassles related to buying inferior equipment. Sure, there are lower-cost machines available, but what happens if the machine needs replacement parts or has a warranty issue? Where do you send it? Who do you talk to?  CK® is a family owned & operated shop that only builds TIG welding equipment, and they stand behind what they sell.

Quality Machine with a No Hassle 3 Year Warranty

The MasterTIG MT375 AC/DC welding machine is simple to operate and easy to fine tune for your welding jobs no matter what your skill level. The robust portable design allows you to easily tackle welding projects from basic fabrication, to aerospace and nuclear applications.

MT375 Specifications:

Input Voltage 230VAC +/-10%, 50/60Hz, single phase 460VAC +/-10%, 50/60Hz, single phase
Input Current (I max)( I eff) 230V: 44 Amps / 26 Amps 460V: 38 Amps / 23 Amps
Output Current Range GTAW 230V: 5-275 Amps DC; 5- 260 Amps AC 460V: 5-375 Amps DC; 5- 360 Amps AC
Output Current Range SMAW 230V: 10-200 Amps DC 460V: 10-300 Amps DC
Rated Output GTAW

230V: 275 Amps @ 21.0 VDC, 35% duty cycle

           260 Amps @ 20.4 VAC, 35% duty cycle

460V: 375 Amps @ 25.0 VDC, 35% duty cycle

           360 Amps @ 24.2 VAC, 35% duty cycle

Rated Output SMAW 230V: 200 Amps @ 28.0 VDC,
40% duty cycle
460V: 300 Amps @ 32.0 VDC,
40% duty cycle
Max. Open Circuit Volts 84 volts
Gas Pre-Flow 0.5 seconds
Gas Post-Flow 0.5-20 seconds
AC Frequency 20-200 Hz
Pulse Frequency 1-200 Hz
Pulse Width 50%
Background Current 10-100%

Arc Start

High Frequency
MT375 Dimensions Height: 15 in. (381mm)
Width: 10.5 in. (267mm)
Length: 20.5 in. (521mm)
MT375 Weight 82 lb. (37.2kg)
Full System Dimensions Height: 45 in. (1143mm)
Width: 20 in. (508mm)
Length: 42 in. (1067mm)
 Full System Weight 170 lbs. (77.1kg)

WC375 Specifications:

Input Voltage 110VAC +/-10%, 50/60Hz
Input Current (I max) 5 Amps
BTU (max) 14,200
Cooland Capacity 9 liters / 2.5 gallons
Coolant Type

Binzel® BTC-15 is recommended.

80% distilled water/ 20% organic coolant.

Unit Dimensions Height: 18 in. (457mm)
Width: 10.5 in. (267mm)
Length: 24 in. (610mm)

Complete Welding System Includes:

  • CK-MT375-AC/DC TIG Welding Machine
  • CK-TL312SF FX, 350A Water-Cooled Torch Package with Super-Flex™ Power Cables
  • Dinse Connector (CK-SLWHAT-35)
  • Starter Front End Parts Kit
    *** Upgrade to a Stubby Pro Gas Lens Kit *** AK-3S-Pro (Select Drop Down Menu Above)
  • Patent Steady-Grip™ Foot Pedal
  • Ground Clamp with 12.5' (3.8m) Cable
  • Single Flowmeter / Regulator
  • 6' (1.8m) Argon Hose
  • Utility Cart
  • Power source made in ShenZhen China by Jasic Inverter Technology Co. to CK's specifications
  • Assembled & packaged in Kent WA with CK's U.S. made products!
